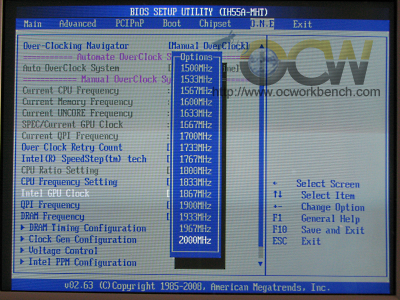

The integrated GPU Clk can be adjusted too. The maximum is
2GHz, the default is 900MHz for Core i5 661 |

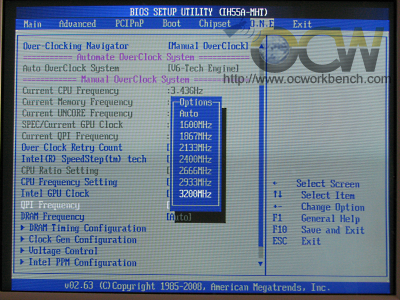

Like wise, the QPI frequency can be upped to 3.2GHz |
|
 |
 |
|

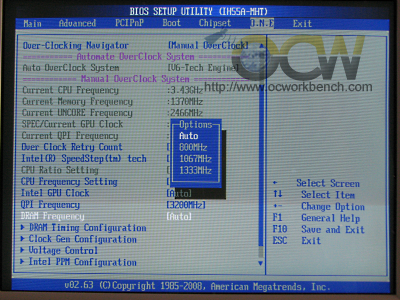

DRAM frequency can only be set to run in 800, 1066 or 1333
mode at a ratio to the BCLK |

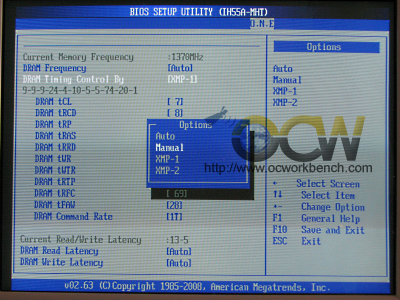

You can also choose to run the ram in XMP timings.

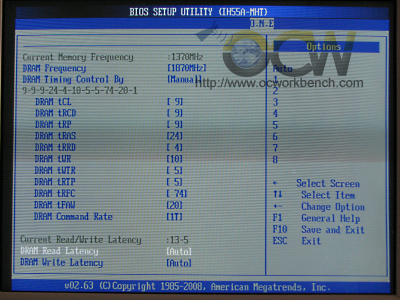

Alternatively you can manually set the timings. |
 |
 |
|
Here is a list of settings available for tuning. |

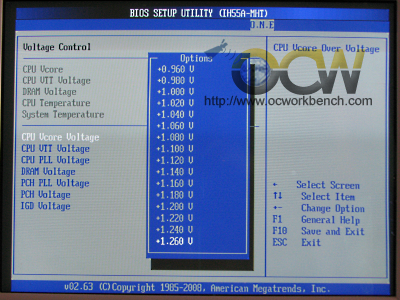

CPU vcore voltage be also be increase to +1.25v of default |
 |
|
|

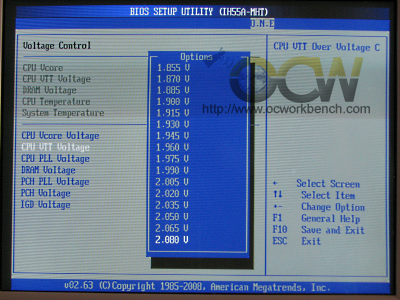

For more stability, it is good to add a bit to the VTT
voltage. Up to 2.0v can be set. |
|
