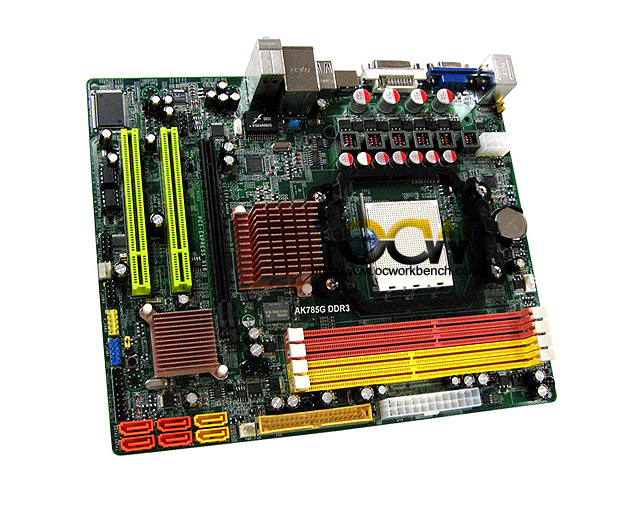

Specifications of the board

CPU Socket:

Support Socket-AM2/AM2+/AM3  processors
Support 5.2GTs 16X16 wide Hyper Transport HT3.0 bus

System Memory:

TWO 240-pin DDR3 SDRAM DIMM sockets
Support 1.5v DDR3-1333 DIMMs with dual channel architecture

TWO 240-pin DDR2 SDRAM DIMM sockets
Support 1.8v DDR2-1066 DIMMs with dual channel architecture
Support single-sided or double-sided, unbuffered, non-ECC DIMMs with 512Mb/1Gb/2Gb technologies
Support up to 8 GB system memory

Chipset：

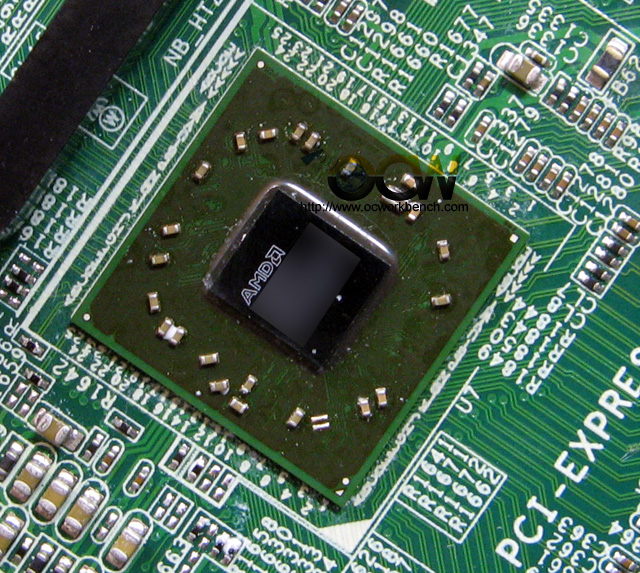

AMD 785G + SB710 chipset

Integrated VGA:

Integrated ATI RV620(HD 4200)-based Graphics Processor(IGP) that integrates a DirectX 10.1 Shader Model 4.1 graphic core,
Support Windows Vista Aero display architecture . , Maximum DAC frequency of 400 MHz Resolution up to 2560x1600 (Under condition), refresh rate up to 85MHz.

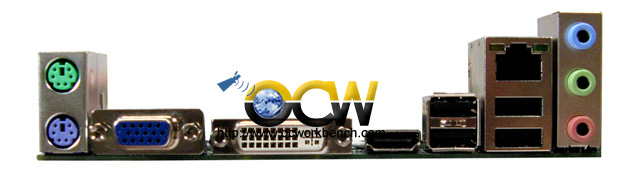

Multiple Display configuration: D-SUB+ DVI-D+HDMI on rear panel , Frame buffer option from 32MB to 256MB
Support UVD architecture for H.264、VC1、MPEG2
Incorporate ATi’s innovative AVIVO HD display architecture

Expansion Slots:

Two PCI connectors compliant with PCI v2.3
One PCI Express (x16) connector compliant with PCI Express Gen2

USB:

Ten USB connectors compliant with USB2.0 from embedded USB controller(6 connectors at rear panel)

P-ATA IDE:
One IDE ports with UDMA-33, ATA-66/100/133 support from embedded IDE controller.

S-ATA:
Six S-ATA II portswith up to 300MB/s from chipset

Gigabit LAN:
One 10/100/1000 Ethernet from Realtek RTL8111DL  PCIe controller

Audio:

Selectable 2, 6 audio from ALC662 (colayout ALC8XX/6XX) HDA compliant CODEC with 20-bit ADC and 24-bit DAC
Support CD-In, S/PDIF-out
Coaxial S/PDIF-out available on rear panel
Support Jack detection for fool-proof audio device installation

I/O:

Onboard Winbond 83627DHG-P LPC I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, COM…
Support Hardware Monitoring function such as fan speed monitoring and CPU temperature sensing.
Intelligent fan speed control for CPU-fan (PWM) for quiet operation

BIOS:

8Mb Flash EEPROM with SPI BIOS
Support Q-Boot for fast bootable device selection

Special Features:

Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Support CPU Over Heat protection
Support CPU, Chassis and Power FAN speed control.
Onboard Q-Button for convenient power-on

Q-Tune Flash for BIOS update without requiring DOS flash utility and bootable diskette
Q-THOR:New generation design for oppugning thunder and static.
Q-Power:Import Saving power technology
Q-Precision:Import high precision SMT hardware and tha lastest CPU socket and then ipport the famous part on important key of mainboard
Q-Booster:Import the power BOOSTER
Q-Tune BIOS for excellent over clocking features:
Support Asynchronous FSB/DIMM timing mode
Support BIOS adjustable CPU clock and voltage, DIMM frequency and voltage settings.

Form Factor:
245mm x 200mm x 40mm, MTX Size

Accessories

User’s manual & driver CD
Flat IDE cable;
S-ATA II data cable;
IO shield
