Gigabyte GA-P55-UD6 Mainboard BIOS Screen shots 3
Bluetooth 30 Aug 2009

BIOS 3

The screen shots are taken with board installed with a Intel Core i5 processor.

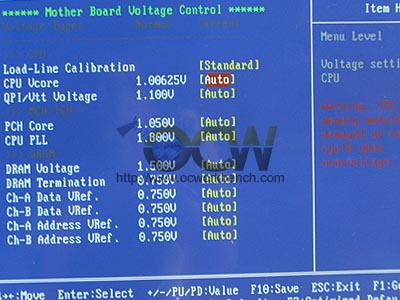

Over here you can choose to apply more voltages to the respective options for better overclockability.

CPU Vcore 0.5v-1.9v
QPI/Vtt 0.8v-1.94v
PCH 0.85v-2.08v
CPU PLL 1.5v-2.58v
DRAM 1.3v-2.6v
DRAM termniation 0.6v-1.305v
Ch A data ref 0.6v-1.275v
Ch B data ref 0.6v-1.275v
Ch A Addr Ref 0.79v-1.05v
Ch B Addr Ref 0.790v-1.05v

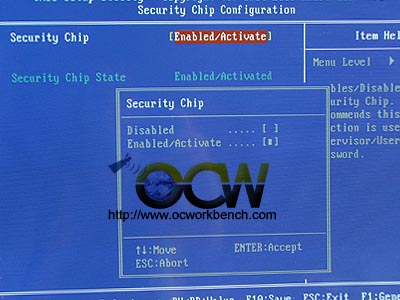

 TPM is available on the UD6 which allows you to secure your data with a USB stick as the key. This option enables this feature.

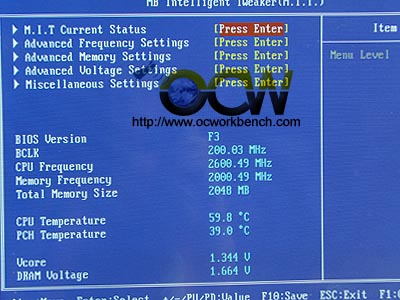

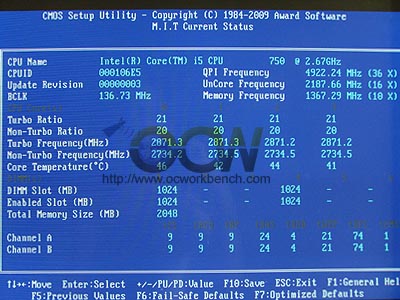

A summary of the BIOS version BCLK, temp and voltage we used on this system. A breakdown of the system when overcloked
