BIOS Screen shots 3 of Gigabyte MA785GPM-UD2H AMD 785G+SB710 Mainboard Review
Bluetooth 20 Jul 2009

BIOS 3

The screen shots are taken with board installed with a AM3 X3 710 processor.

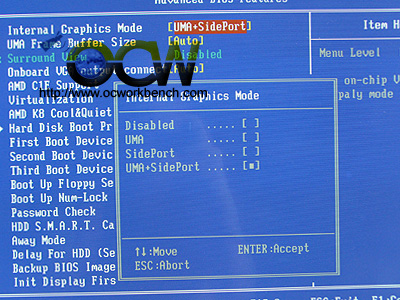

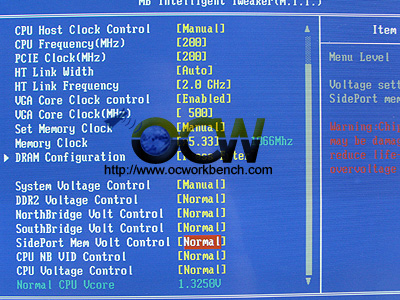

Voltage adjustments can be made to the corresponding elements in the BIOS. DDR2 Voltage : default ~ +0.3v North Bridge Voltage : default +0.3v South Bridge Voltage : default ~ +0.3v Sideport Mem Voltage:  -0.6v  ~ +0.3v CPU north bridge VID :   -0.6v ~ +0.6v CPU Voltage control :	The integrated graphics can run in 3 modes. UMA only, Sideport Only or UMA+Sideport which gives the best performance

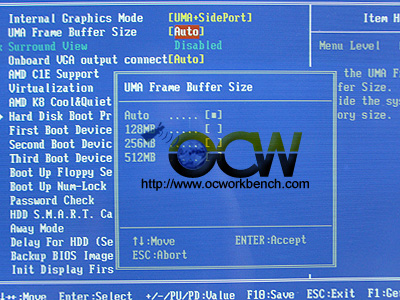

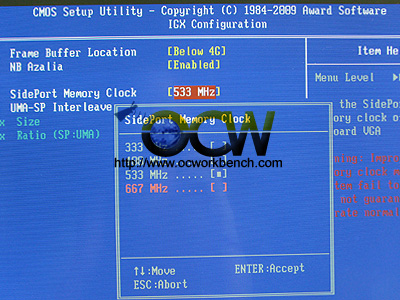

UMA Frame buffer size can be changed here	The Sideport memory timing can be adjusted here to up to 667MHz.
