CineBench 10 Benchmark of ECS X58B-A Intel X58+ICH10R Core i7 Mainboard Review
Bluetooth 10 Mar 09

Benchmarks - CineBench 10

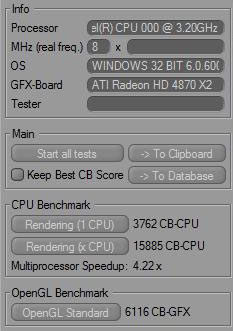

CineBench 10 is one of the popular rendering tool that supports newer SSE4 instruction sets. In this test, take a look on how CineBench performs using the Core i7 965 on the ECS X58B-A Mainboard.

It is not difficult to notice that when 1 CPU rendering is involved, the Core i7 series doesn't seem to perform way faster than the QX9770. When it comes to multiprocessing, it is definitely speedier than the QX9770 and Core i7 940. It is 13% faster than Core i7 940 running on Gigabyte GA-EX58-UD5 and 27% faster than Intel QX9770 running at 3.2GHz on Intel P45 chipset mainboard.

As for ECS X58B-A, it seems that running the board at FIX multiplier x 133 does give it a disadvantage with a slightly slower speed in rendering as compared to the ASRock X58SuperComputer. Could it be the BIOS optimisation, or could it be due to the ram timings used are different on the two boards.

Cinebench 10	Rendering 1 CPU	Rendering X CPU	Multiprocessor Speedup	OpenGL
ECS X58B-A (Core i7 965)	3762	15885	4.22x	6116
ASRock X58SuperComputer (Core i7 965)	3856	15973	4.14x	6798
Gigabyte GA-EX58-UD5 (Core i7 940)	3379	14022	4.15x	6445

ASRock P43DE	3534	12305	3.48x	5981
ASRock P45XE-WiFiN	3534	12565	3.56x	6782
ASRock P45R2000-WiFi	3511	12545	3.53x	6168
ECS P45T-A	3520	12420	3.52x	6000
Gigabyte GA-EP45 Extreme	3519	12374	3.52x	5848
ASRock P43R1600Twins-WiFi with DDR2-1066	3521	12489	3.55x	6118
ASRock X48TurboTwins-WiFi DDR3-1600	3538	12636	3.57x	4113
