3DMark06 and 3Dmark Vantage benchmarks of ECS X58B-A Intel X58+ICH10R Core i7 Mainboard Review
Bluetooth 10 March 2009

Benchmarks - 3Dmark2006/3DMark Vantage

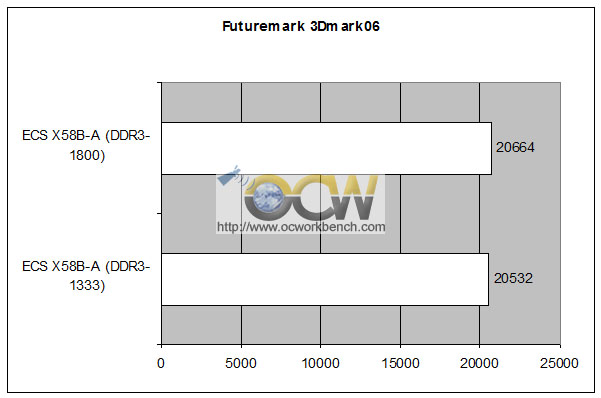

In this test, we paired up the board with a ASUS HD 4870X2 graphics card with catalyst 9.2. We ran the test twice. The first time it is with the RAM modules running at default timings as detected. The second test it is with XMP enabled, it gets detected and runs at the same clock speed but at DDR3-1800 mode.

As we can see, the results differ by around a 130 points (~0.6%) which is very minute.

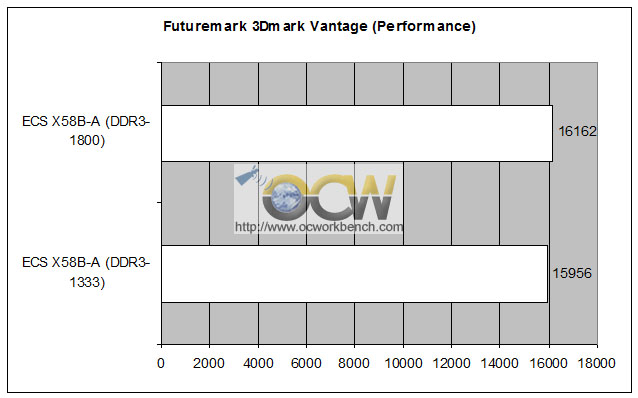

In 3DMark Vantage, the result differs. At DDR3-1333, it runs with a score of 15956 and at DDR3-1800, it scored 16162. A 1.29% improvement can be seen from the benchmarks.
