Specifications

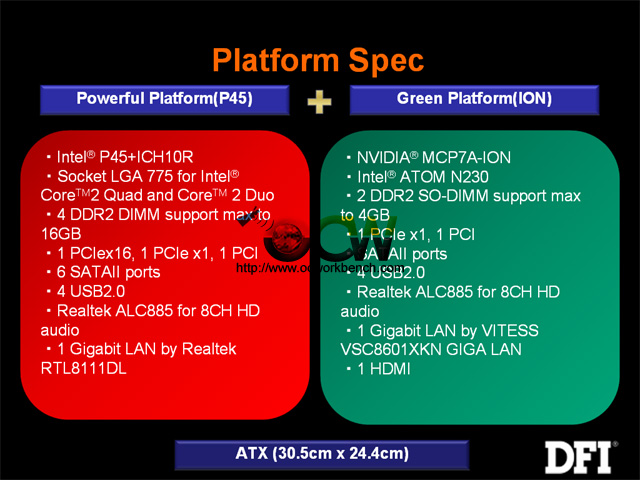

The board consists of 2 systems on one board. The first set is the more powerful Intel P45+ICH10R supporting the LGA775 platform e.g. Intel Core 2 Duo. The second system on board is the NVIDIA ION chipset supporting the Intel Atom N230 chipset. Both have their individual RAM sockets, 4 DDR2 for Intel P45 and 2 DDR2 SO-DIMM for the ION system.

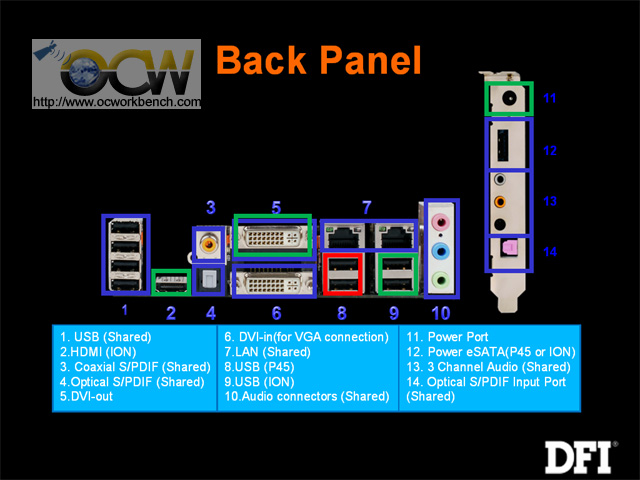

Most of the ports are shared except those in the brackets below. The blue ones can both be used by both systems. The ones in Green are explicit set aside for the ION system, e.g. the HDMI port, 2 USB ports and a Power port on the bracket. The dedicated port for P45 is the USB port for Intel P45 in Red.
