GIGABYTE 10.1” Small Notebook Booktop™ M1022M First looks [Computex Taipei 2009 Coverage @ OCWORKBENCH]
Bluetooth 31 May 2009

Introduction





A brand new creative concept offers an all-in-one solution

Your browser may not support display of this image. GIGABYTE is proud to launch the all new, highly innovative, GIGABYTE Booktop M1022M 10.1” Small Notebook, after the successful launch of the GIGABYTE TouchNote T1028 at the end of March. The TouchNote epitomised the ideal tablet pc with its 180° swivel touch screen and innovative yet elegant and svelte design, and this spirit is carried over to the M1022M. The M1022M is the result of countless hours of pain staking ingenuity and creativity, culminating in the brand new Booktop. A total fusion of the best features offered by nettops and netbooks, the M1022M offers a 10.1” display with LED backlighting, powerful performance in a lightweight package, extreme usability with up to 7˝ hours of life from the 6-Cell battery and the ultimate in practicality, the Booktop Docking Station, which provides the accessibility of a desktop with the portability and convenience of a notebook.



【New Concept: Dual Functions - 1 Notebook】

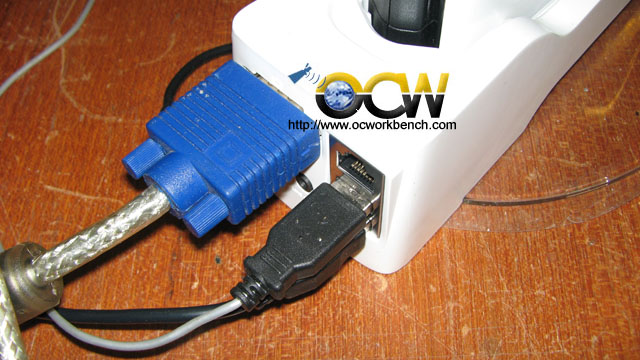

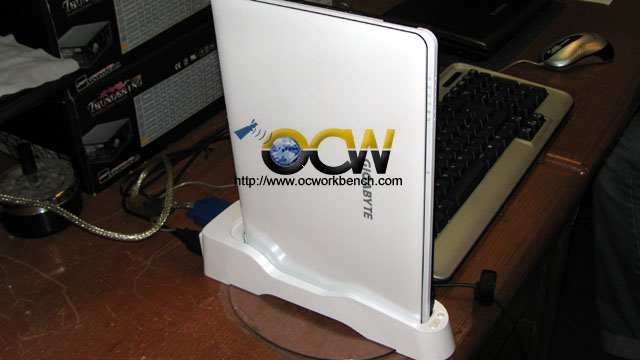

Your browser may not support display of this image.The differentiator, the feature that sets the Booktop M1022M apart from all the other products, is the Booktop Docking Station. The conversion dock offers users a host of connectivity including USB ports, LAN connection and VGA ports. The conversion docks unique design allows the Booktop to stand upright, reducing the footprint of the notebook, offering a neat look with less clutter and no wasted space and offering easy connectivity to an external display as well as a keyboard and mouse,. The product also allows for a seamless transformation from a netbook to a desktop, without the need for a system shut down and restart, as users can simply connect the Booktop M1022M to the dock and use it as if they were using a desktop, immediately. The conversion docks other function is to double up as a battery charger for the Booktop. Consumers will benefit from the flexibility of the Booktop M1022M, a product that fits in perfectly with their lifestyle, while also offering a fully mobile solution in an increasingly dynamic world.



【Powerful Specifications – Go Anywhere, Do Anything】

Your browser may not support display of this image. The Booktop M1022M features an Intel Atom N270 Mobile Processor, 1GB of DDRⅡ Memory, and a 2.5” 160GB SATA Hard Drive, which is upgradable to 320GB. It also features Windows XP, the world’s most popular operating system, the most widely used consumer operating system. Other features include Bluetooth 2.1 with Enhanced Data Rate, which increases transfer speeds by up to 3 times that of a conventional Bluetooth connection, rivaling Bluetooth connections in the latest PDAs and cellular phones. It also supports Draft N Wireless LAN, 802.11n, the fastest Wi-Fi connection currently available. The PCI Express Card slot allows for expansion as well as upgrading to a 3.5G connection, offering Internet on-the-go at HSDPA speeds.



Item M1022 Spec. CPU Intel® Atom™ Processor N270 1.6GHz

OS Microsoft® Windows® XP Home

Chipsets Mobile Intel® 945GSE Express Chipset+ ICH7M

System Memory 1GB SO-DIMM*1(Max 2GB)

Graphics Mobile Intel® 945GSE Express Chipset+ICH7M

LCD 10.1” TFT-LCD WSVGA, 1024x600 with LED backlit

Hard Disk Drive 2.5" 9.5mm SATA HDD 5400rpm, 160GB

Optical Disk Drive N/A 3.5G Module HSDPA support

LAN Ethernet 10/100 BASE-T

WLAN 802.11b/g/n, 802.16 WiMAX(optional)

Bluetooth Built-in V2.1+EDR

Webcam 1.3M pixels webcam

I/O Port USB(2.0)*3, Mic-in, Earphone-out, VGA, RJ45, 4-in-1 card reader (SD/MMC/MS/MS Pro), Express Card, Docking Port, DC-in

Audio Speaker 1.5 watt*2 Security Kensington lock

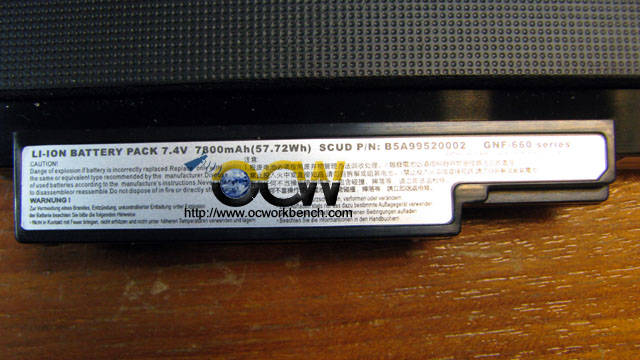

Battery Li-ion 6 cells, ~7800mAh Battery

Dimension 265(W) x 191(D) x26.5~30.5(H)mm Weight 1.3kg (with 6-cell battery)





Discuss in Forum
