Bluetooth 8 Sep 2009

The screen shots are taken with board installed with a Intel Core i5 750 processor (2.66GHz).

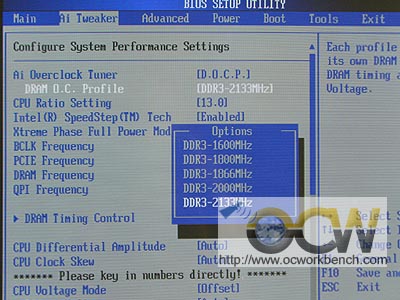

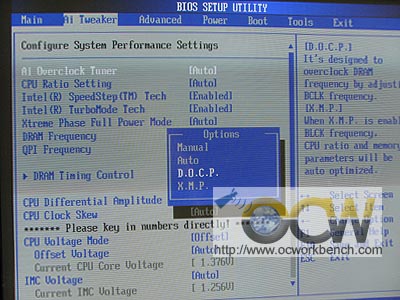

In the BIOS Setup Utility, you can manually overclock the processor. Alternatively, you can select D.O.C.P or X.M.P. If you choose XMP, you will be provided the XMP profile 1 and 2 from your XMP compliant memory modules. Just select it and the system will change the multiplier and BCLK to suit the XMP settings.	If D.O.C.P is selected, you can run the system based on tested configuratoins to suit DDR3-1600 to DDR3-2133 (OC). The BCLK and CPU Multiplier will be set accordingly to ensure your memory runs at the rated overclocked speed.

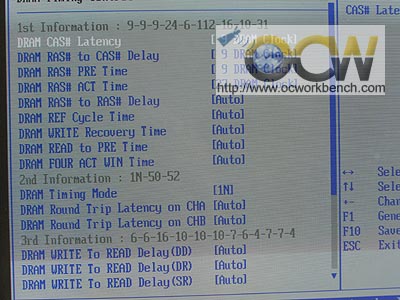

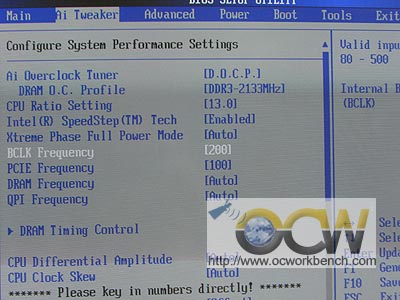

If you use manual setting, BCLK can be set in the range of 80Mhz - 500MHz. Multiplier of up to 21x can be selected for this processor Core i5 750.	The XMP timing of our module is shown above. You can choose to tweak it tighter or relax it more to achieve higher clocks.
