BIOS Screen shots 3 of ASUS M4A785TD-V EVO AMD 785G+SB710 Mainboard
Review
Bluetooth 26 Jul 2009
BIOS 3
The screen shots are taken with board installed with a AM3 X3 710
processor.
|
|
|
|
|
|

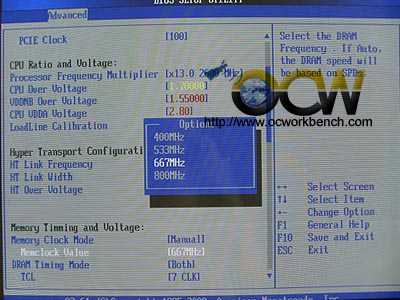

Async Memclk can be set to
400, 533, 667 or 800MHz. |

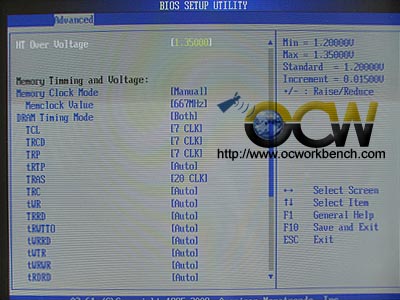

DRAM timing adjustments, CAS
latency, tras, trcd ,trd etc. can be set here |
|
|

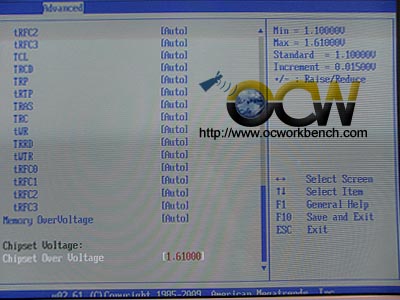

Chipset Overvoltage can be set
at 1.10v to 1.61v, auto |

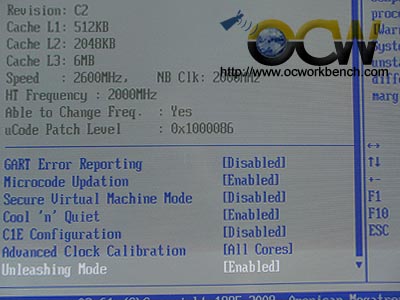

To enable the 4th core on the
Phenom II X3 710 processor, the BIOS 's Advance Clock Calibration must be
turned on. Unleashing mode must be Enabled. After a reboot, the 4th core
appears. |
|
|

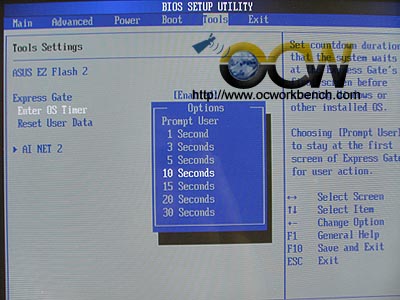

The ASUS M4A785TD-V EVO comes
with Express Gate. Over here you can set the timing or prompt user to enter
express gate. Express Gate is a utility that allow users to surf, chat on
line, browse pictures without entering Windows. |

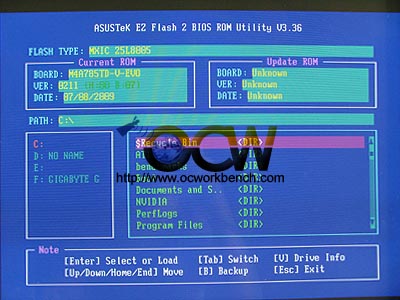

EZ Flash2 allow users to
update the bios without leaving the BIOS screen. Just activate and select
the path where the file was download. Execute and the BIOS gets flashed in. |
