[Review] Chipsets on ASUS U3S6 USB 3.0/SATA 3 (6Gbps)
add on card for ASUS P7P55D Premium
Bluetooth 10 Nov 2009
Gallery
Below are pictures of the interface card and the
enclosure

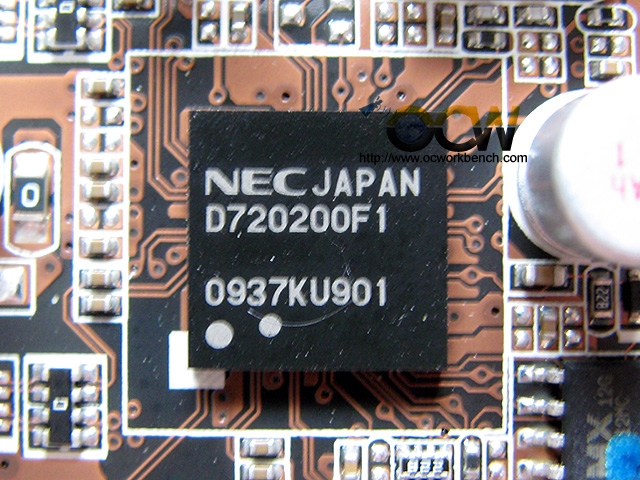

NEC USB 3.0 controller chip

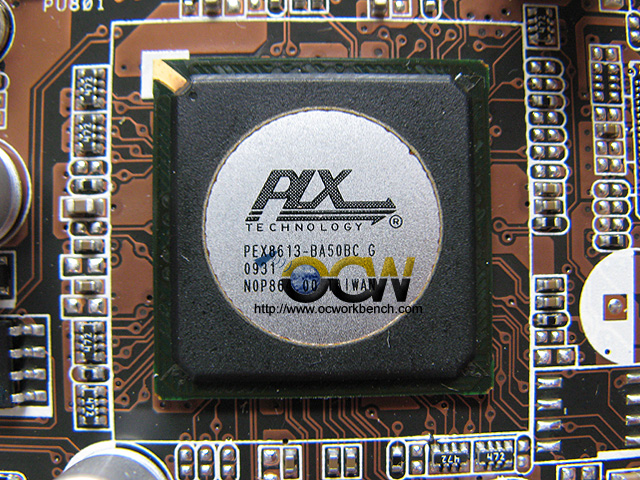

PLX PEX 8613 chipset. The PLX ExpressLane PEX 8613 is a low-power PCIe Gen 2
switch that offers 12 lanes and three ports, and a scalable high-bandwidth
interconnection to a wide variety of designs and applications

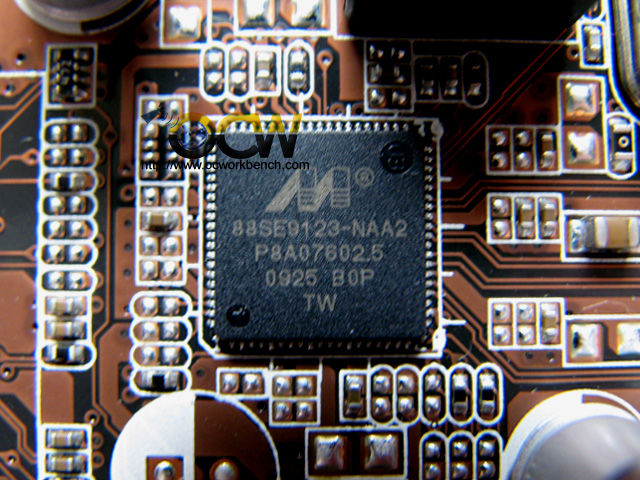

Marvell 88SE9123 SATA3 (6Gbps) controller chip

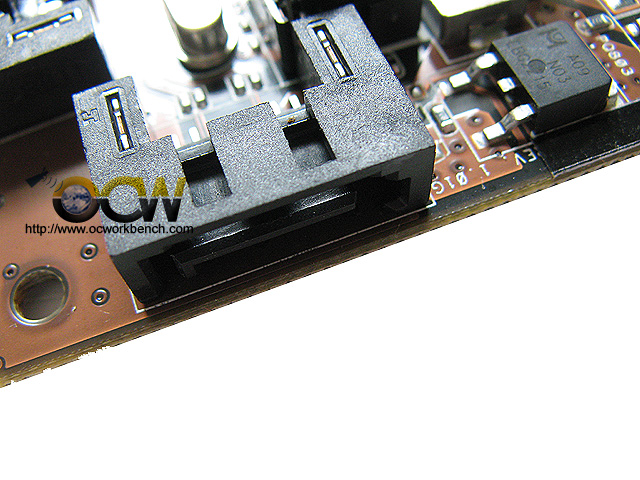

There are 2 x SATA 3 (6Gbps) ports on the U3S6 add on card
