Today, Intel will officially announce
it's Intel P55 chipset. This chipset supports the new LGA 1156 Socket type
processors. Ironically, the LGA1156 processors also comes in the form of Core i7
and Core i5.
ASRock will introduce the ASRock P55 Deluxe
mainboard soon. It comes in a ATX form factor and has a all solid capacitor
design with solid caps using a v16 power phase design. It supports Intel® Socket
1156 Core™ i7 / Core™ i5 Processors support Intel® Turbo Boost Technology,
Hyper-Threading Technology, Untied Overclocking Technology and EM64T CPU.
It will be based on Intel P55 chipset and
supports dual channel DDR3 memory. A total of 4 DIMM slots supporting up to a
total of 16GB of DDR3-2600 (OC). XMP is supported.
For graphics expansion, the board comes with
3 x PCI Express 2.0 x16 slots (blue @ x16 mode, orange @ x8 mode, orange @ x4
mode) and 1 x PCI Express x1 slot. It also has 3 x PCI slots. The PCI Express
slots support ATi CrossFireX, 3 Way CrossFire X, NVIDIA SLI and 3 way SLI.
The audio used is a Realtek ALC890 with DTS
support. 2 x GbE LAN for dual LAN teaming. The board is also EuP ready, that is
standby power must comply with European standards of 1W at standby.
For peripherals connection, there are USB,
1394 and eSATA. The traditional ASRock features Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver, Instant Boot, ASRock Instant Flash, Hybrid Booster,
CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.) are
supported on this board.

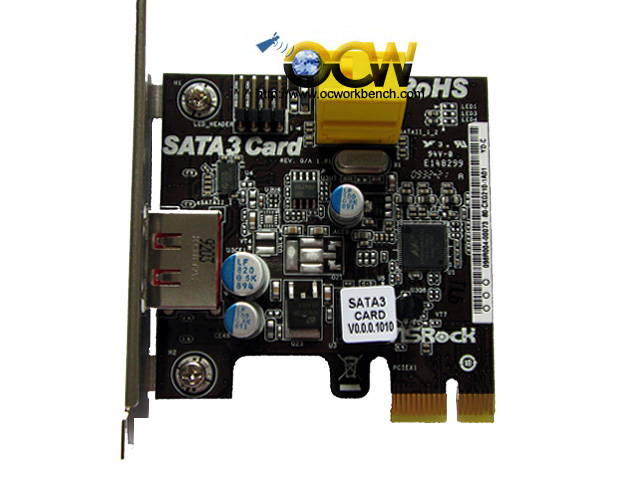

The bundle will also include a SATA3 (6Gbps)
controller card powered by Marvell chipset.
Specs
P55 Deluxe
Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer
Capacitors)
CPU - Intel® Socket 1156 Core™ i7 / Core™ i5 Processors support Intel® Turbo
Boost Technology
- Advanced V16 Power Phase Design
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset - Intel® P55
Memory - Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
- Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot - 3 x PCI Express 2.0 x16 slots (blue @ x16 mode, orange @ x8
mode, orange @ x4 mode)
- 1 x PCI Express x1 slot
- 3 x PCI slots
- Supports ATITM CrossFireXTM, 3-Way CrossFireXTM and Quad CrossFireXTM
- Supports NVIDIA® SLITM and Quad SLITM
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- DTS (Digital Theater Systems) support
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
- Supports Dual LAN with Teaming function
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 7 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATAII/USB Connector
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front
Speaker / Microphone
Connector - 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID
10, RAID 5 and
Intel Matrix Storage), NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x TPM header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Smart Switch - 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature - 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit / 7 compliant
Certifications - FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
Accessories - 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
