BIOS Screen shots 1 of ASRock M3A785GXH/128M AMD 785G+SB710 Mainboard Review
Bluetooth 13 Aug 2009

BIOS 1

The screen shots are taken with board installed with a AM3 Phenom II X3 710 processor.

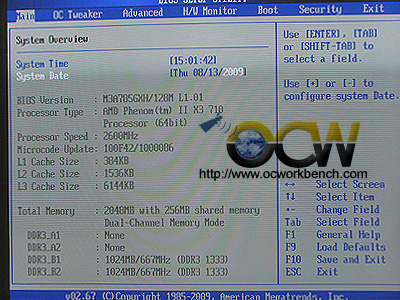

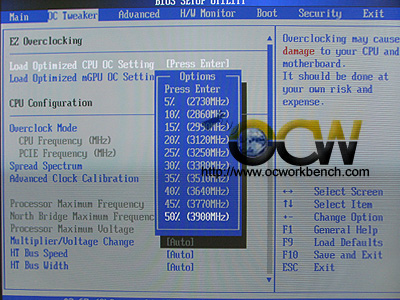

The is main page showing the processor & memory information, how mcuh memory is shared etc.	Under OC Tweaker, the first option allows you to load factory settings for tested oveclock by up to 50% of it's default speed.

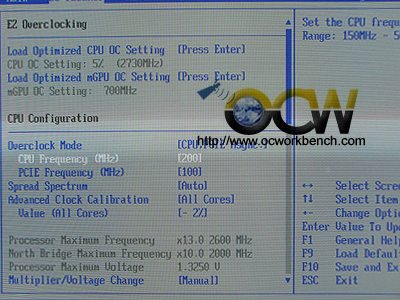

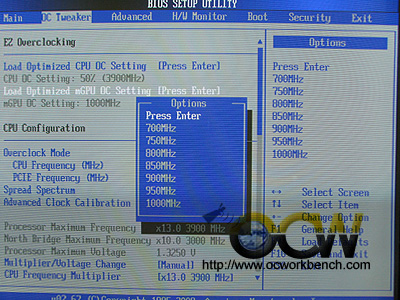

For the integrated graphics core, the selections available range from 700MHz to 100MHz. You can of course set your own frequency that works. The ASRock M3A785GMH/128M only allows up to 900MHz in this pull down menu.	CPU Freq range from 150- 500MHz, PCIe Freq range from 75MHz to 250MHz

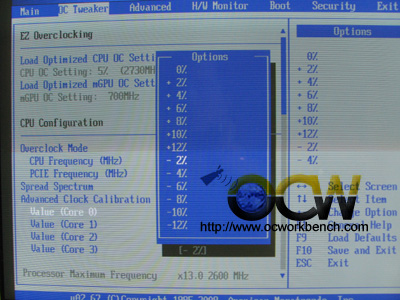

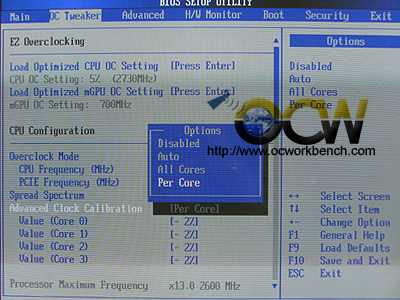

There is ACC which when enabled opens up the hidden cores of your Phenom II X3 or X2 processors	The Value can range from -12% to + 12%
