Picture Gallery of the ASRock ION 330
Bluetooth 16 Sept 2009
The system

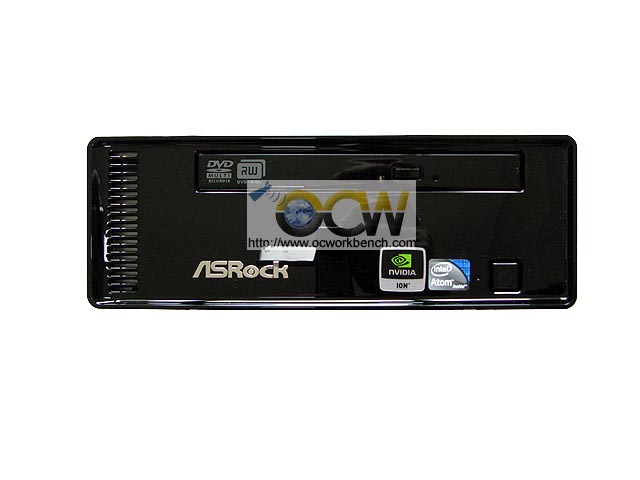

The system itself consists of the black reflective casing with a
power on/off switch in the front. This unit we have here is the non Bluray
version. It comes with a DVD RW slim drive.

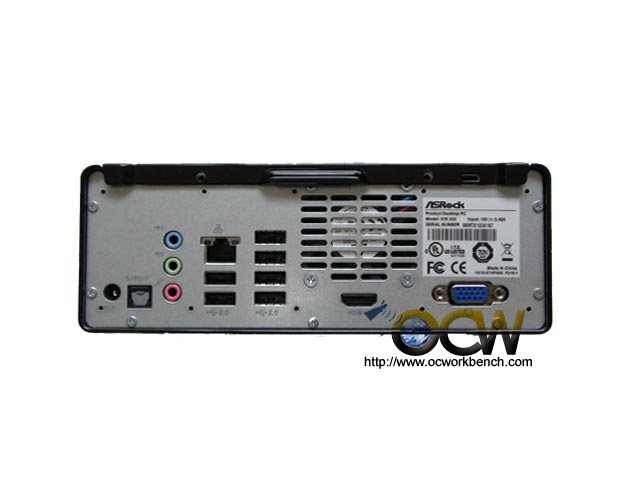

At the back panel of the box (from the left) is the
Power source. S/PDIF digital, audio ports. 6 USB ports, 1 GbE, 1 HDMI out and 1
D-SUB. The bundle comes with HDMI-DVI converter allowing you to use the HDMI
output port to connect it to DVI capable LCD monitors.

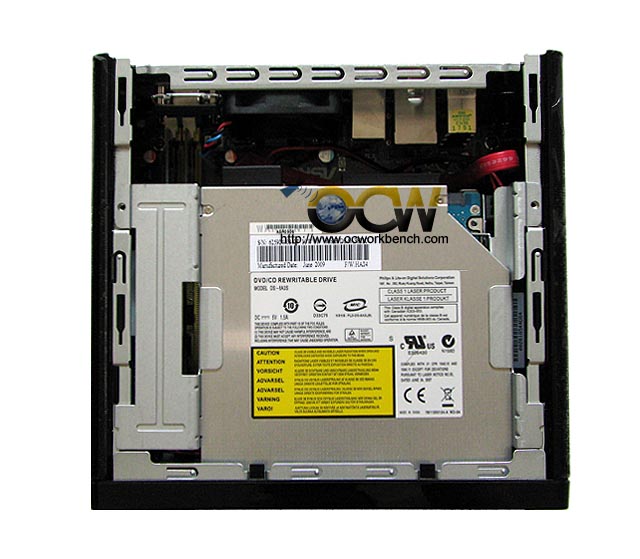

With the top cover opened, we can see the
Rewritable drive. Underneath it is a 320GB Seagat HDD.

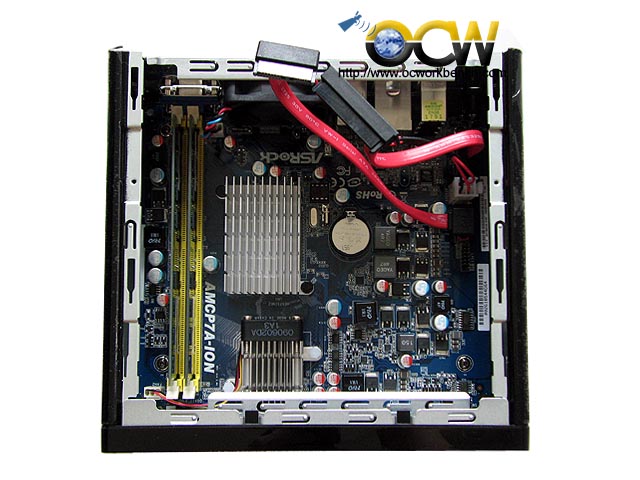

The mainboard is named AMCP7A-ION and has dual
channel DDR2-800 support of up to 4GB maximum.
Below is a video showing the internals of the
ASRock ION 330 system.
