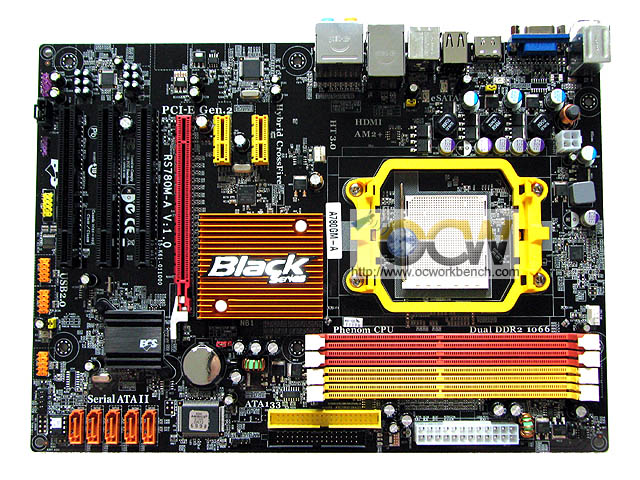

The full ATX board comes with a 4 phase PWM. It comes with 3 PCI, 1 PCIe x16, 2 PCie 1x1 slots on board. The board comes with Atheros GbE and IDT 7.1 ch audio. Both the north and south bridge are passively cooled.

The board supports four 240-pin unbuffered non-ECC DDR II SDRAM DIMM sockets with up to 2GB per DIMM; 8GB of memory can be installed on board. For AM2 processors, DDR2-533/667/800 is supported. For Phenom AM2+, memory supported is DDR2-667/800/1066. It also support Asynchronous clocking mode between FSB and DIMM.

The new SB700 supports 10 USB connectors compliant with USB2.0 from embedded USB controller (6 connectors at rear panel). The SB700 also supports a P-ATA IDE for One IDE ports (up to 2 IDE devices) with UDMA-33, ATA-66/100/133 support from embedded IDE controller. It also support 6 SATA RAID II ports with up to 300MB/s from chipset with RAID 0,1,0+1 support.  One port is shared with the eSATA at the rear.

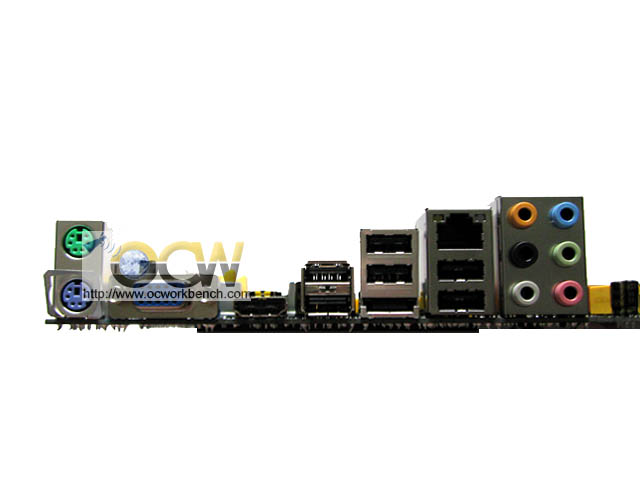

At the rear panel are PS/2 keyboard connector. There is a D-SUB, HDMI port. There are 6 USB ports, 1 HDMI and GbE Port. Next to it is the 7.1 audio ports.
