Penryn1600SLIX3-WIFI NVIDIA nForce 680i chipset mainboard review
- BIOS Screen shots
Bluetooth 22 Mar 2008
BIOS 2
The screen shots are taken with board installed with a Intel
QX9770.
|
|
|
 |
 |

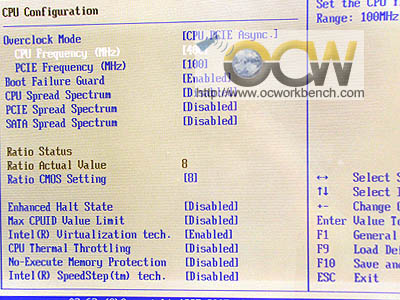

| Over at this screen, the main
settings for CPU Frequency and PCIe Frequency can be set. CPU Frequency
ranges from 100 ~ 500MHz while PCIe Freq ranges from 100~150MHz. Overclock
mode can be ASync, Sync or Auto. |

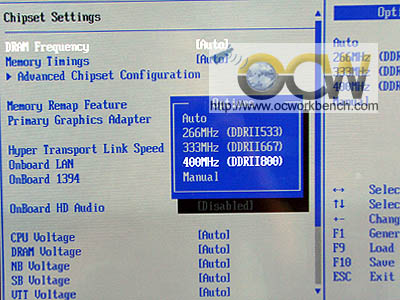

DRAM Frequency can be set to
operate in ASync memory settings of 266, 333 or 400MHz (DDR2-800) |
 |
 |

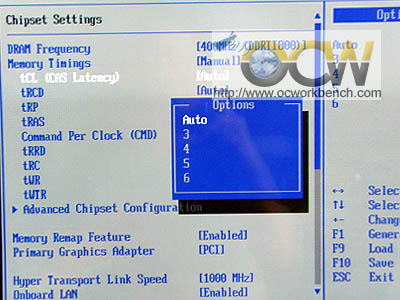

| Memory timings can be set,
ASRock has opened up more than just the CAS, tRCD, tRP, tRAS for your own
adjustments to suit your o/c needs. |

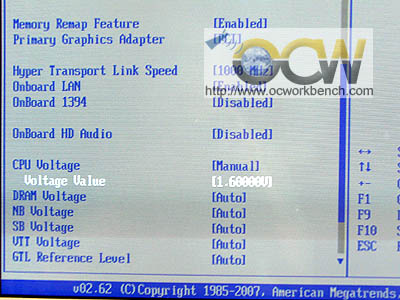

CPU Voltage can be adjusted up
to 1.600v |
