ASRock P45XE-WiFiN Intel P45 chipset mainboard review - Mainboard layout
Bluetooth 30 Oct 2008

Gallery

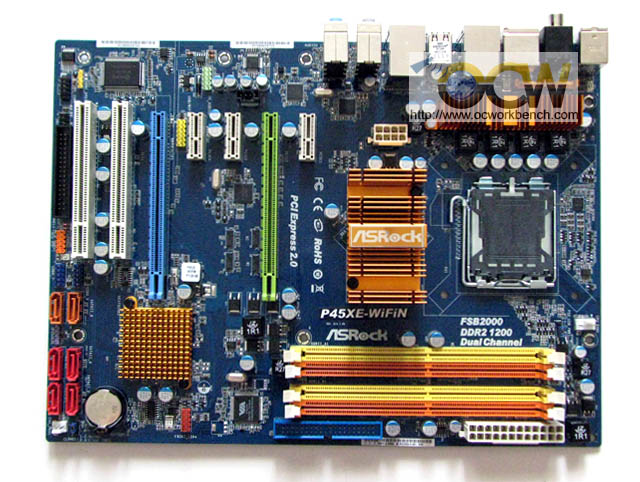

The ASRock P45XE-WiFiN comes with 2 PCI, 3 PCIe x1 and 2 PCIe x16 slots. Behind the Green slot, we can see 2 GbE controller. The audio codec is next to it. To the right is a 8 pin AUX and power regulator attached with heatsink.

At the bottom of the board is the USB external, Firewire external connectors. There are 6 SATAII ports with 4 in red, 2 in orange. the 2 orange connectors are meant for connecting to the right most orange connectors for eSATA use. Next to it is the ICH10R south bridge. To it's right is the VIA 1394 controller.

Next to the 1394 controller is the a IDE slot and 4 DDR2 DIMM slots supporting up to DDR2-1200. Total supported memory 16GB.

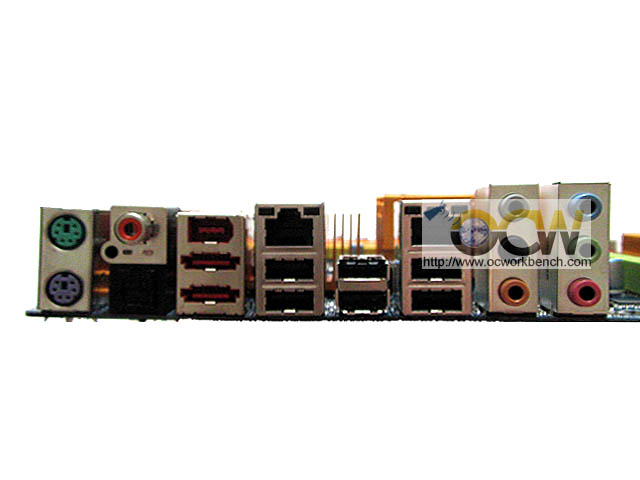

The back panel consists of PS/2 mouse/keyboard, Coaxial and Digital S/PDIF, 1 1394, 2 eSATA, 6 USB, 2 GbE and 7.1 ch audio ports.

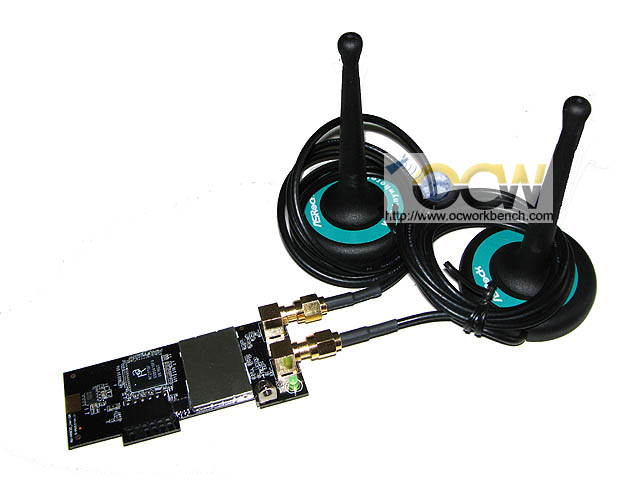

The bundle comes with a WiFi-N Card with 2 antennas.
