ASRock 4Core1600P35-WIFI+ Intel P35 ICH9R chipset mainboard review - BIOS Screen shots
Bluetooth 7 Jan 2008

BIOS 2 (Updated with BIOS P1.00)

The screen shots are taken with board installed with a Intel QX9770.

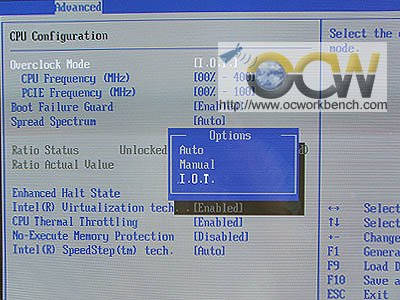

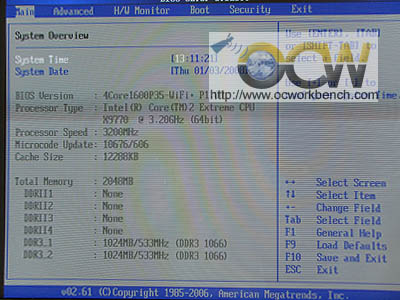

The screen shows that the Intel QX9770 processor is detected.	In overclock mode, you can set it to manual, auto or I.O.T mode. I.O.T mode allows you to select a percentage increase in CPU and PCIe clock of up to 30% each.

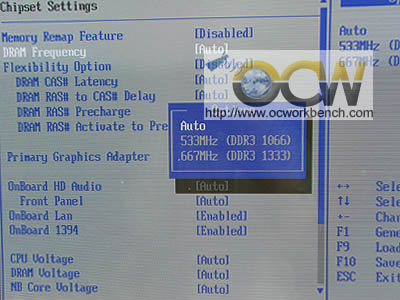

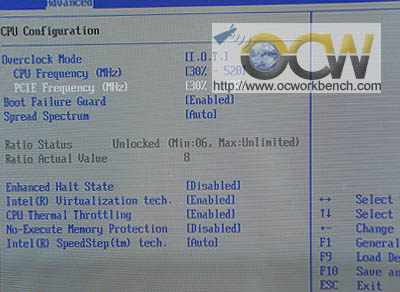

A Max of 30% can be selected for both CPU and PCIe Freq clk. Alternatively you can set it to manual settings. CPU Freq range is 100 ~ 800 MHz. PCIe freq range is 50 ~ 150MHz.	With my Samsung DDR3-1066 modules, I can select to operate in ASync memory settings of 533MHz or 667MHz. CPU QX9770 operates at 8x400MHz.
