BIOS Screen shots 2 of
J&W RS780UVD-AM2+ AMD 780G+SB700 mainboard
Bluetooth 29 Jan 2008
BIOS 2
The screen shots are taken with board installed with a Intel
QX9770.
|
|
|
 |
 |

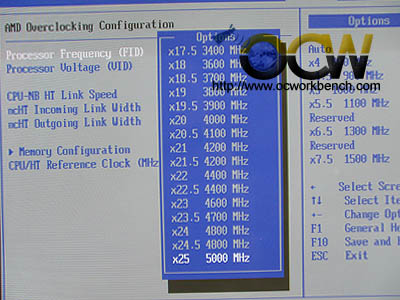

| CPU multiplier can be upped to
x25. It is best used with Black edition AM2 CPUs like 5000+ or 6400+ |

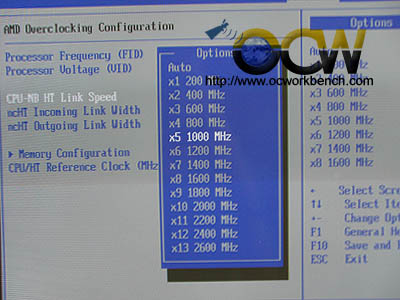

CPU-NB HT Link speed. AM2
default is 5x. Phenom 9600 will run at X9 (1800MHz) |
 |
 |

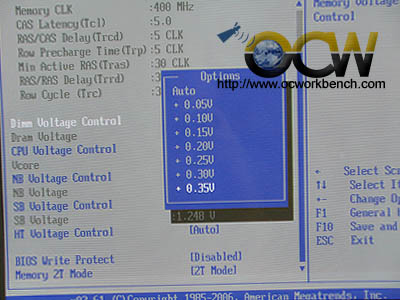

| Dimm voltage can be set, up to
+0.35v, that gives you a maximum of 2.15v |

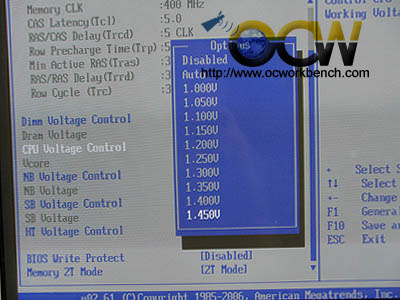

CPU voltage control allows you
to boost the CPU voltage. A Max of 1.45v can be applied |
 |
 |

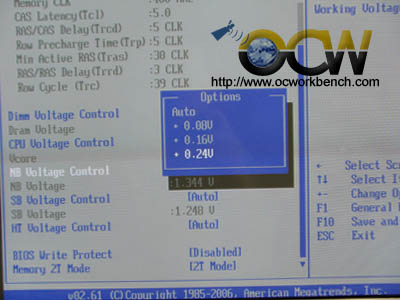

| NB voltage can be upped to
0.24v. This is an important setting if you wish to increase the GPU CLK |

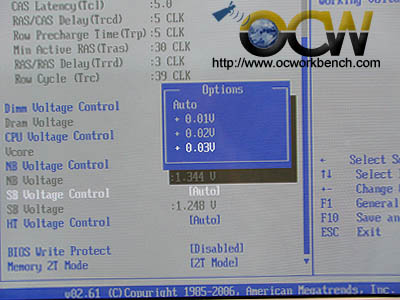

SB voltage can be upped by
+0.03v |
