Jetway M2A480VP (AMD 480X) Review Intro 2/5
Bluetooth 9 Jan 2007

Pricing of ATI RD480 boards >>>

Gallery

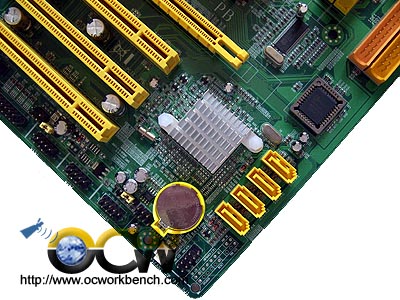

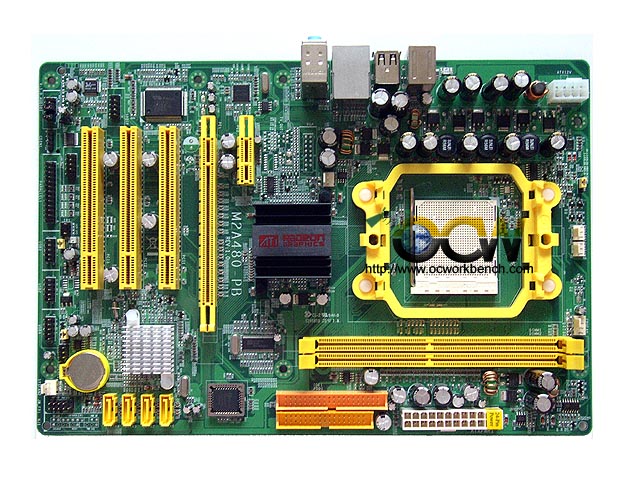

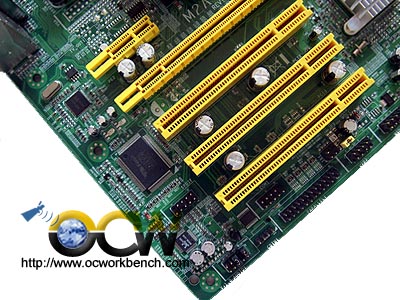

Firstly, lets take a look at the mainboard. On tht top left corner, we can see the audio codec, IO control and Fast Ethernet controller. There are 3 PCI , 1 PCIex1 and 1 PCIex16 slot. On the left of the 1st PCI slot, you will find all the Audio connectors, SPDIF connector, Parallel port connector and 3 USB port connetors.  At the bottom of the mainboard, you will see the CMOS Battery, south bridge SB600,4 SATAII ports.

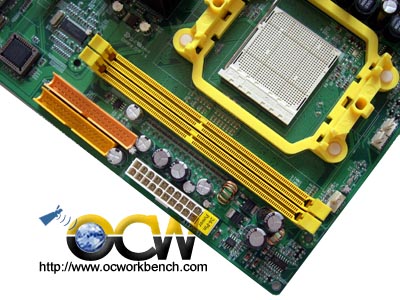

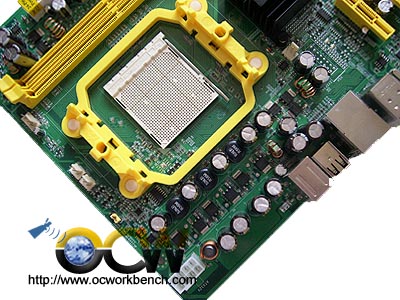

On the right hand top corner, you will find the caps, a 8 pin AUX power. At the centre is the AMD 480X chipset. Below At the bottom of the board, we see 2 DIMM slots supporting up to 2GB of DC-DDR2-800. There is 1 IDE channel and 4 SATA II ports in RAID 0,1,0+1,5  array.

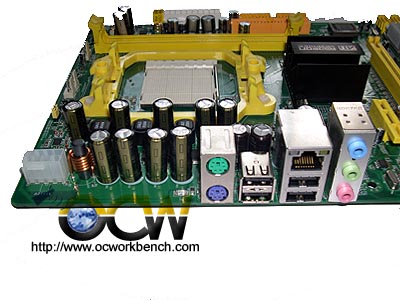

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 x Fast Ethernet LAN port and 6 ch audio ports. The empty portion where the LPT1 is usually found is for DIY to mount cooling fan to cool the capacitors.
