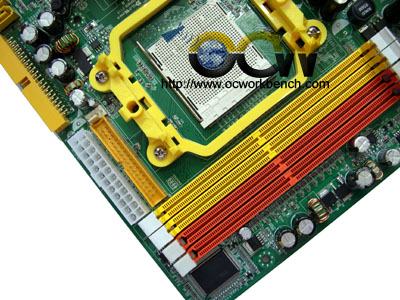

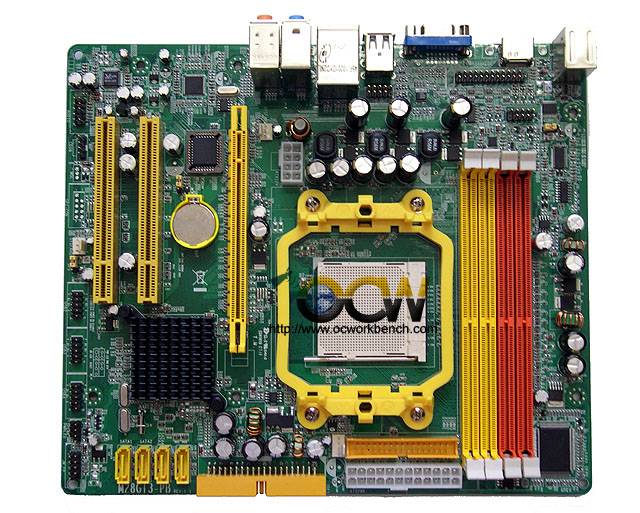

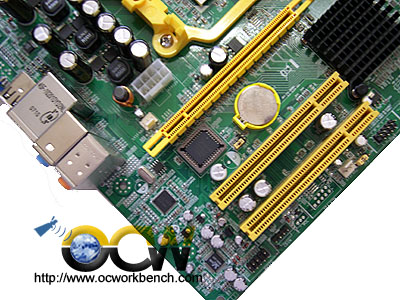

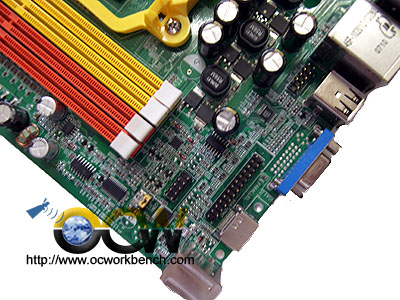

Starting from the left hand corner, we see the audio codec and PCIe based GbE right behind the yellow PCI and PCIe Slot. The 4 pin power connector can be seen near the centre of the board where the Socket seats. To its right are 4 DIMM DDR2 slots. The pin connector behind the USB port is the TV Out connector The one next to the HDMI interface is the Parallel LPT1 conector.

At the bottom left, we can see the 1394 and USB external connectors, 4 SATA II ports with RAID 0,1,0+1 support, 1 and 1 channel of IDE supported by the SB600.

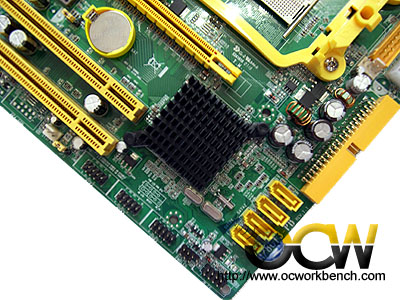

On the left side of the PCB, we can see the USB connectors for external USB connections. The single chipset is attached with a passive heatsink. The chipset supports 4 SATA II ports with RAID 0,1,5,0+1 and a single channel of IDE.

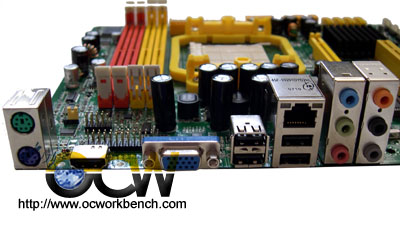

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 HDMI,1 GBE, 1 D-SUB and 8 ch audio ports.
