Jetway I35P-SG Intel P35/ICH9 Mainboard Review Intro 2/6
Bluetooth 8 Oct 07

Pricing of
Intel P35 boards

>>>

Gallery

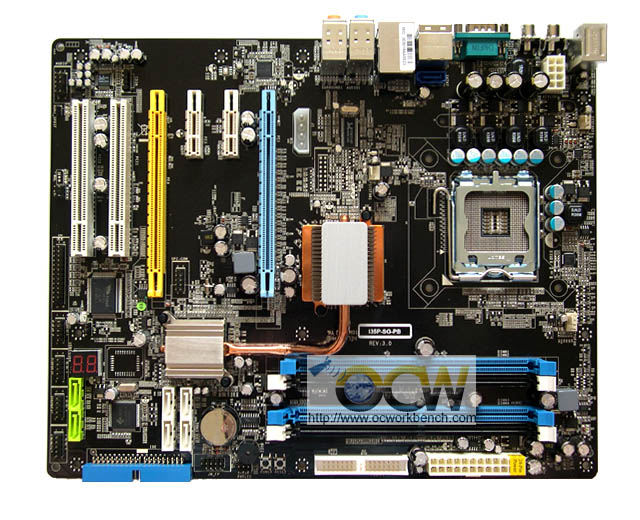

The board comes with 2 PCI, 2 PCIe x1, 2 PCIe x 16 (4 + 16 electrically) slots. Behind the PCI slot is the Realtek audio codec and a PCIe GbE behind the blue PCIe slot. Over to the right, you can see the 4 pin AUX and CLK GEN. A 4 phase VRM is used on this board for stability.

At the bottom left of the mainboard, we can see the DEBUG LED, I/O controller, 6 SATAII, 1 IDE port. The JMB363 and ICH9 is right next to the white coloured SATA ports. The heatpipe links the south bridge to the north bridge cooling both effectively. 4 DIMM slots supports up to 8GB of DDR2-800.

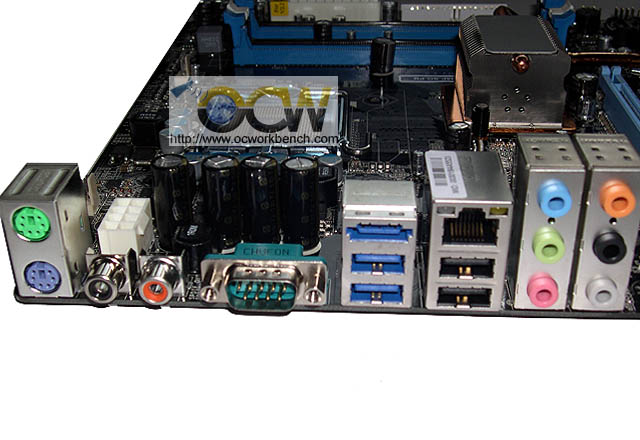

On the back panel, you will find the PS/2 Keyboard and mouse port. There is S/PDIF Coaxial out, 6 USB ports, 1COM port, 4 USB ports, 1 eSATA, 1 GBE and 8 ch audio ports.
