. ECS NF650iSLIT-A (NVIDIA 650i) mainboard review - Sandra07 and CPU-Z
Bluetooth 5 March 2007

Benchmarks

Sandra 07

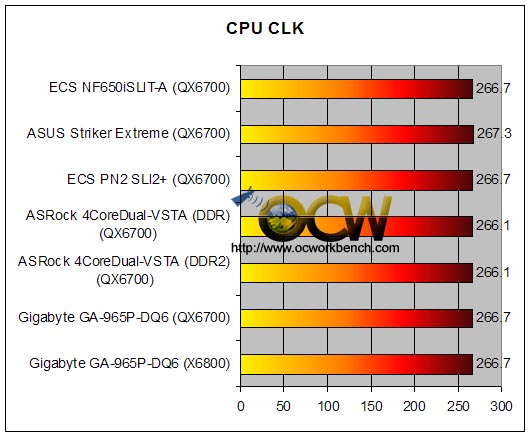

The boards are first measured to ensure accuracy of CLK. In CPUZ test, we see that the CLK of the ECS NF650iSLIT-A, ECS PN2 SLI2+, Gigabyte GA-965P-DQ6 is at 266.7 while the ASRock 4CoreDual-VSTA is at 266.1MHz. The ASUS board is at 267.3MHz.

In the tests to follow, the boards  are ran with 2GB of Corsair DDR2 running at CAS 5, 5-5-18 DDR2-800 mode while the ASRock 4CoreDual-VSTA will run in DDR mode with 1GB of Corsair memory at CAS 2, 2-2-5, 1T cmd and in DDR2 mode, it is run with the same pair of DDR2 modules (2GB) running at CAS 3, 3-3-8, 1T cmd DDR2-533.

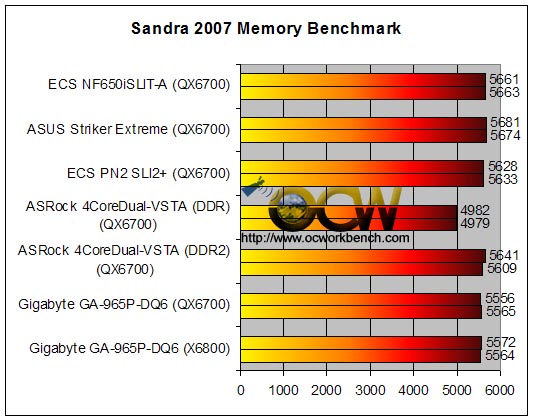

From the chart below, we can see that ECS NF650iSLIT-A based on the nForce 650i is as good as the 680i chipset. As we know, the 650i chipset isnt much different other than it supports Dual 8x PCIe and offer some lesser features.
