ECS N8800GTS-320MX (8800GTS) DX10 Graphics card Review benchmarks - 3Dmark05 and 3Dmark06
Bluetooth 12 Feb 2007

 Pricing of
GF8800GTX

>>>

Benchmarks

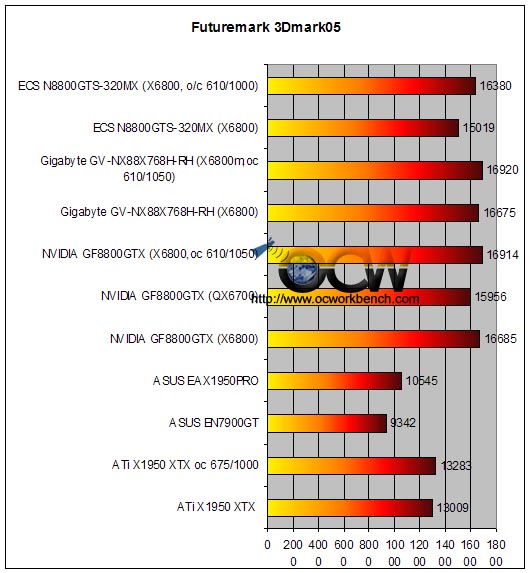

3DMark05

In this test, we ran the card in default clk settings at 575/900 and at o/c speed of 600/850 using systool. On inspection, the card actually defaults to 513/792. As we know the RAM used is a 1.1ns GDDR3, chances of reaching above 900MHz is pretty high. At defaults, the card scored 15019 in 3Dmark05. A 8800GTX which costs almost doubled will give you a score of ~ 16685. In terms of price/performance, this card is probably quite worthwhile as the ASUS EAX 1950pro only score 10545 verses a 15019 on the ECS N8800GTS-320MX, the lowest end 8800 series card.

When overclocked to 610/1000, we can see that the scores reached beyond the 16K mark. That is pretty impressive I would say. The score is even better than a GF8800GTX running with a QX6700 as shown in the chart.

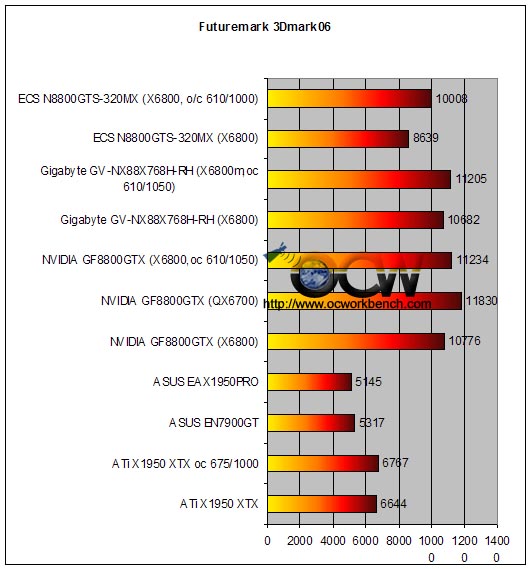

3DMark06

In 3DMark06, the score are very apparent too. The default stock speed sets the record of 8639.

  SM2 HDR/SM3 CPU Score Total
X6800 with ref 4832 4948 2579 10776
X6800 oc with ref 5096 5761 2568 11234
QX6700 with ref 4812 4935 4064 11830
X6800 with Gigabyte 4821 4902 2535 10682
X6800 with ECS N8800GTS-320MX 3702 3700 2511 8639

From the results, we can see that it has surpassed the ATi X1950XTX by almost 30% in this test. That is really an impressive score. The difference between the 8800GTS-320MX and the 8800GTX 768M is 23%

When overclocked, it shot up to 10008, that is 15.8% increase.
