Something different

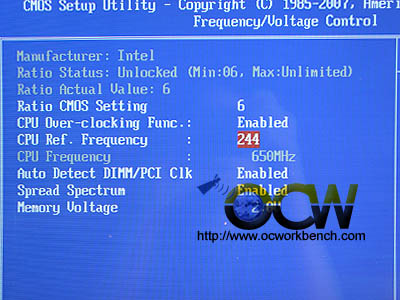

in the BIOS design of ECS G33T-M2 is taht the CPU ref frequency is in a
percentage of the default CLK. For example, at 650MHz, it is 244% of the
default 266MHz of the X6800 processor. Basically, by changing the Ref
Frequency, you will see the corresponding CPU Freq. The Clk gen is able to
support up to 650MHz.

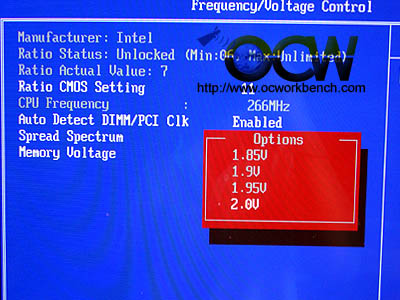

The Memory voltage can be max up to 2.0v which is a bit
not enough for the DIY. Anyway, this board is meant for normal desktop user.

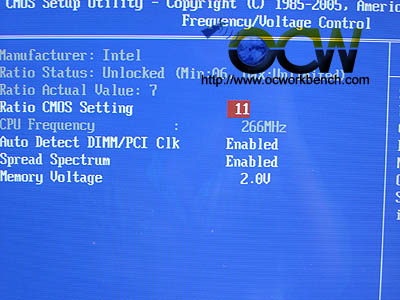

CPU Multiplier can
be adjusted

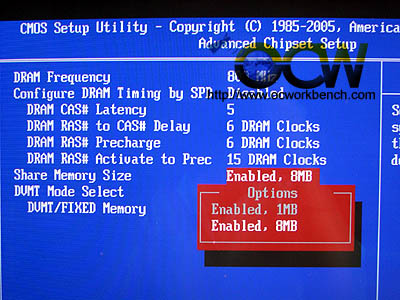

Over here you can
set the share memory size for the integrated video

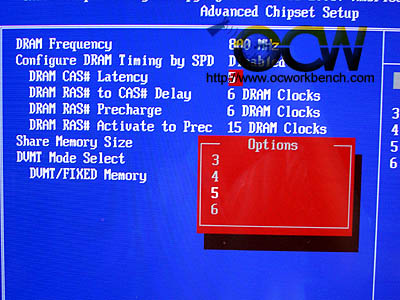

The screen where
you can overide the SPD values of your DIMM and specify it to run at higher
or lower latency

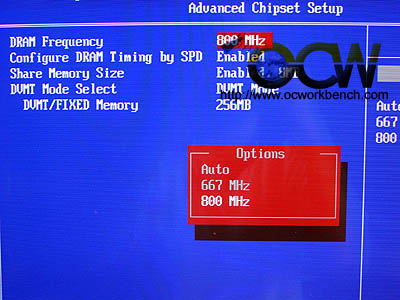

ASync DDR setting
allow you to configure to run your DRAM frequency at either DDR2-667 or
DDR2-800
