ECS G33T-M2 mATX Intel G33/ICH9 Mainboard Review Intro 2/4
Bluetooth 28 Sep 2007

Pricing of
ECS G33T-M2

>>>

Gallery

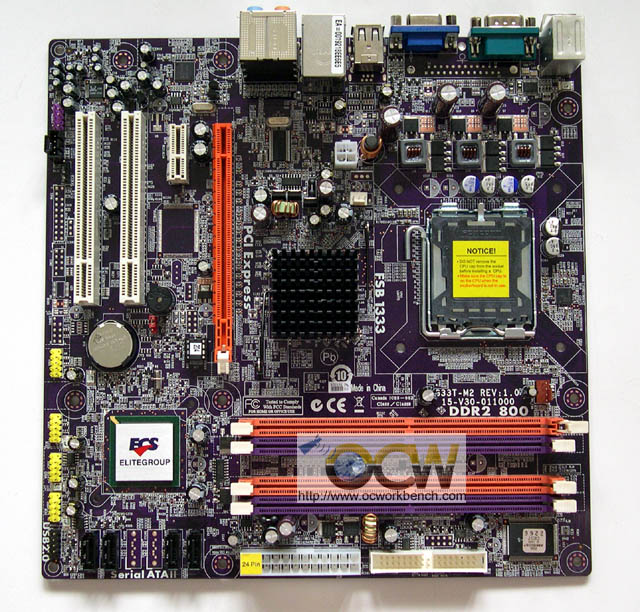

The board comes with 2 PCI, 1 PCIe x1 and 1 PCIe x16 slot. Behind the slots are the audio codec and GbE controller. Over to the right, we can see it uses a 3 phase design and the LGA775 sits just right below it.At the centre of the board is the north bridge G33 which controls the graphics functions too.

At the bottom left corner you will see the front panel connector On the side are yellow coloured USB connectors for external USB brackets. 4 SATAII ports are sighted, supported by the ICH9 south bridge. The south bridge ICH9 is attached wiht a silver heatink with a ECS label. To its right is 4x DDR2 DDR2-800 supporting up to 8GB max. A 24 pin power connector is just right below it. near the PCIe x16 slot is the SPI BIOS.

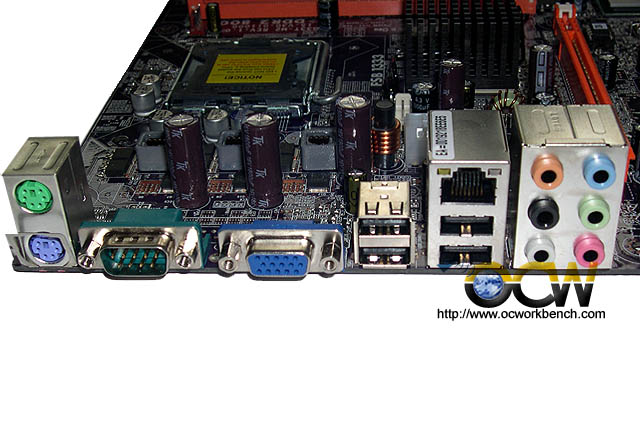

On the back panel, you will find the PS/2 Keyboard and mouse port. There is COM1, D-SUB, 4 USB, 1 GbE and audio ports.
