ECS
AMD690GM-M2 Integrated graphics mainboard (AMD 690G) Review Intro 4/5 Bluetooth 28 Feb 2007
Pricing
of
ATI RD480 Boards
>>>
BIOS 1

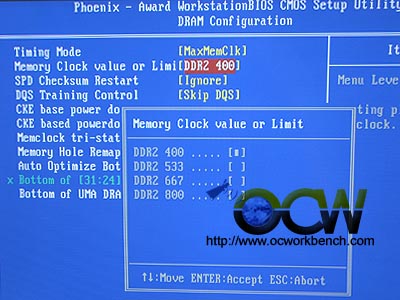

Over here you can set the maxmemclk to run
the memory in sync or async mode to the cpu.

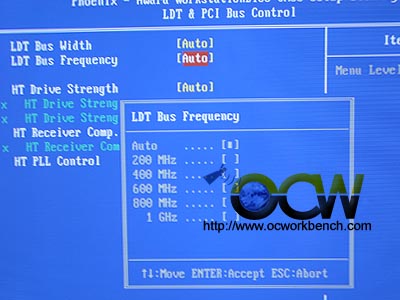

HT Multiplier or LDT Bus Frequency can be
set from 200MHz to 1GHz. Setting it to 800MHz or 600MHz will help in
overclocking the board as the HT will run within 1GHz.

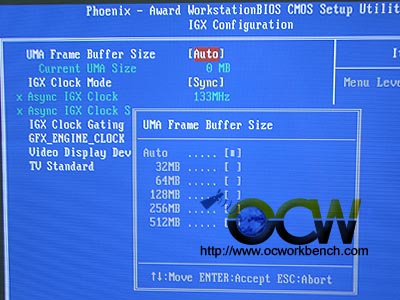

UMA frame buffer size can be set to auto or
up to 512MB
