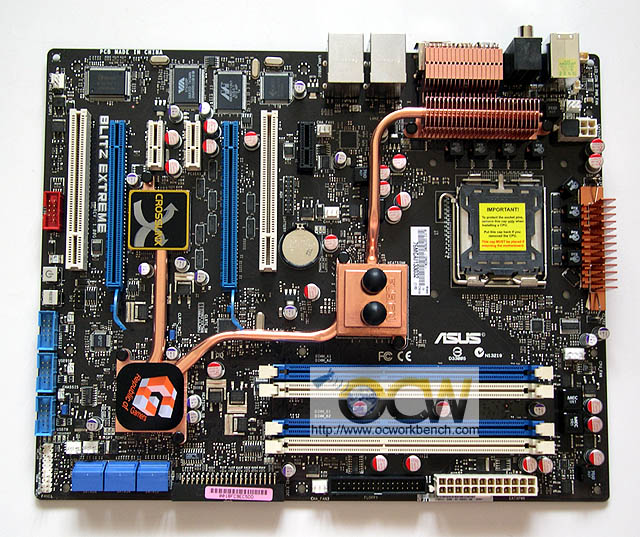

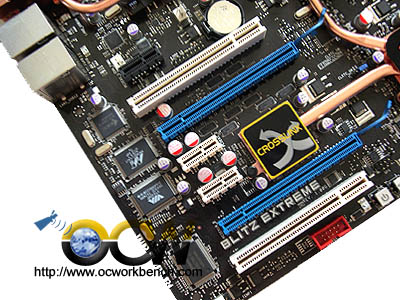

The board comes with 2 PCI, 2 PCIe x1 and 2 full length PCIe x16 slots. Just behind the PCIe slots are the chipsets, they inculde the WInbond I/O chip, VIA 6308P 1394 controller, Marvell GbE PCIe, JMB363 SATAII controller and another GbE controller. Noticed that there is no audio codec chip on board. That is because it is found on the add on card needs to be slotted onto the board. Next to the first blue PCie slot is a CrossLinx chip. Beneath it is a IDT chip that is capable of splitting the north bridge's PCIe x16 into 2 x PCIe x8.

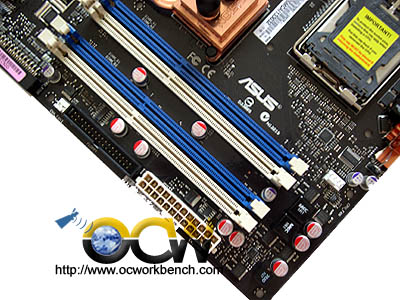

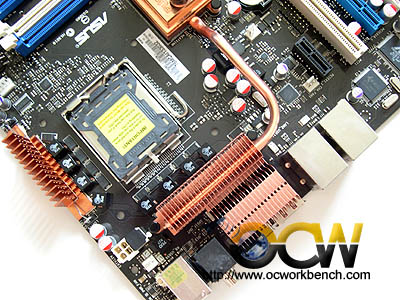

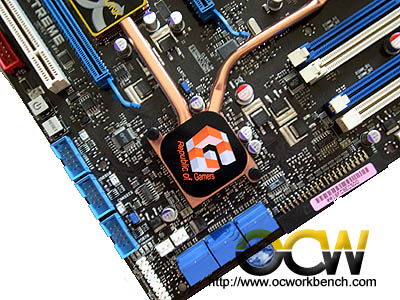

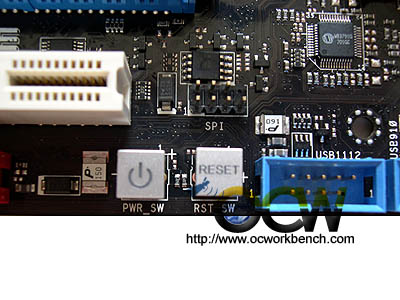

At the bottom left corner you will see the red coloured 1394 pinout together with 3 blue coloured pin out for USB brackets. There is also a On/Off and reset switched in between them. Near the front panel is 6 SATAII ports and 1 IDE connector. The south bridge ICH9R sits right above it. To its right is 4 DIMM slots for fitting in the DDR3 modules. Notice there are no fans on board, the chipsets are all cooled using heatpipe for a noiseless PC.

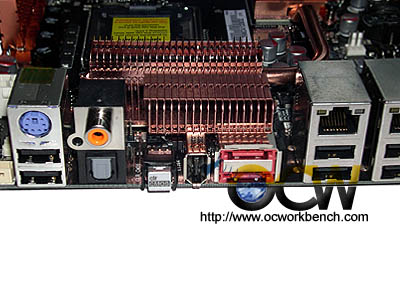

On the back panel, you will find the PS/2 Keyboard (no ps2 mouse port), S/PDIF out/coaxial, 2 xeSATA, 4 USB, 2 GbE and 4 USB ports. There is also a Clear CMOS button for easy clearing of CMOS without having to open the casing. Additional USB ports and 1394 ports is provided via external brackets.
