ASUS M2A-VM HDMI (AMD
690G) mainboard review Introduction
Bluetooth 5 Feb 2007
Introduction
ASUS
M2A-VM HDMI is the board that a lot of HTPC users will look forward to. Today,
we got hold of more information of the upcoming board from ASUStek.

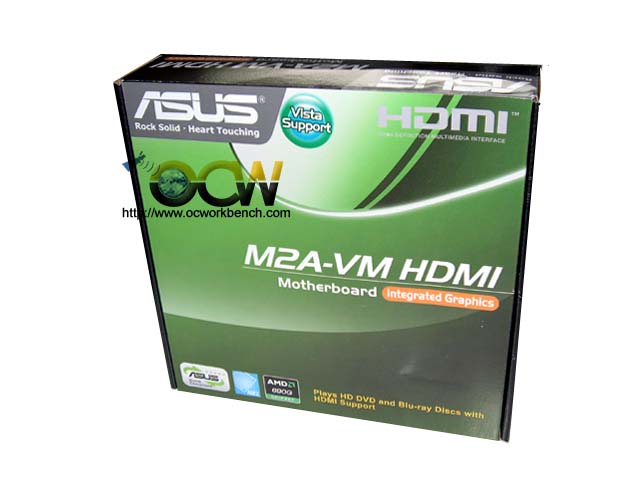

ASUS M2A-VM is a mATX baord with the
integrated AMD 690G formerly ATi RS690 chipset paired with SB600 south bridge.
The board supports Athlon64/X2/Sempron and it AMD Live! Ready. It supports aDual
channel memory architecture with 4 x 240-pin DIMM, support max. 8GB DDR2
800/667/533 ECC and Non-ECC,un-buffered memory is supported.
For video, the integrated ATI
Radeon X1250-based graphics can share up 128MB of memory and supports Dual VGA
using DVI-D with max. resolution 2560x1600 (@ 60Hz) and RGB with
max. resolution 2048 x 1536 (@85Hz). An external PCIe based daughter board can
be slotted with slots for HDMI interface with HDCP.
The board also supports ALC883 High Definition Audio 6-channel CODEC and GbE,
10 USB ports, 4 SATA II with RAID 0,1,5,10. Other features include SFS (Stepless
Frequency Selection) from 200MHz to 400MHz at 1MHz increment, Adjustable CPU
Voltage at 0.0125V increment and ASUS C.P.R.(CPU Parameter Recall)
| Specifications |
|
CPU
|
Support AMD® Socket AM2 Athlon64 / Athlon64 FX /
Athlon64 X2 / Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
|
|
Chipset
|
AMD 690G
ATI SB600
|
|
Front Side Bus
|
2000 / 1600 MT/s
|
|
Memory
|
Dual channel memory architecture
4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and
Non-ECC,un-buffered memory
|
|
VGA
|
Integrated ATI Radeon X1250-based graphics
Maximum shared memory of 256 MB
Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)
Supports RGB with max. resolution 2048 x 1536 (@85Hz)
Dual VGA output support:
RGB & DVI
Note: DVI-D can not be converted to output RGB Signal to CRT.
|
|
Expansion Slots
|
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
|
|
Storage
|
1 x UltraDMA 133/100
4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10
|
|
LAN
|
PCIe Gb LAN
|
|
Audio
|
ALC883 High Definition Audio 6-channel CODEC
Supports Jack-Sensing, Enumeration, and Jack-Retasking
Supports S/PDIF out interface
|
|
Overclocking Features
|
SFS (Stepless Frequency Selection) from 200MHz to
400MHz at 1MHz increment
Adjustable CPU Voltage at 0.0125V increment
ASUS C.P.R.(CPU Parameter Recall)
|
|
USB
|
10 USB2.0/1.1 ports
|
|
Special Features
|
ASUS MyLogo2
ASUS CrashFreeBIOS3
ASUS EZ Flash2
ASUS Q-Fan
ASUS O.C Profile
ASUS Music Alarm
|
|
Back Panel I/O Ports
|
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x DVI
1 x VGA
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
|
|
Internal I/O Connectors
|
3 x USB 2.0 connector supports additional 6 USB 2.0
ports
High Definition Front panel audio connector
COM port connector
CD audio-in connector
1 x S/PDIF output connector
CPU / Chassis/ Power Fan connectors
Chassis Intrusion connector
24-pin EATX power connector
4-pin ATX 12V Power connector
|
|
BIOS
|
8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS
2.3
|
|
Manageability
|
WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by
PME
|
|
Support CD
|
Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Anti -virus software(OEM version)
|
|

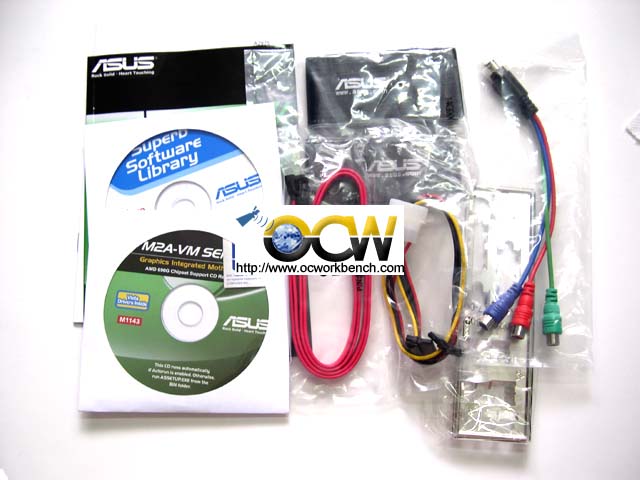

Accessories
|
User' s manual
1 x Serial ATA cable
1 x SATA power cable
1 x UltraDMA 133/100/66 cable
1 x FDD cable
1 x I/O Shield
|
|
Form Factor
|
uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)
|
|
