ASRock ConRoe1333-D667 945GC A2 Mainboard Review Intro 2/4 @OCWorkbench
Bluetooth 17 May 2007

 Pricing of
ASRock ConRoe1333-DVI/H

>>>

Gallery

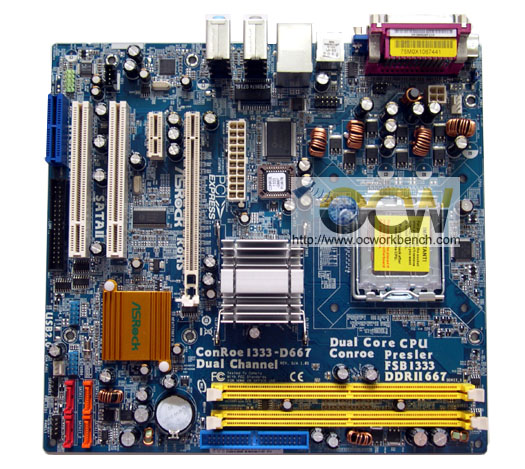

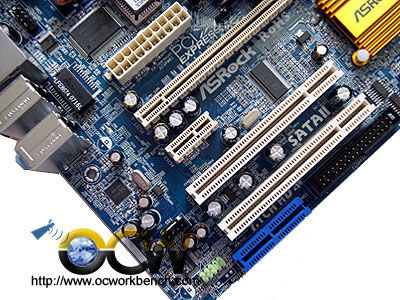

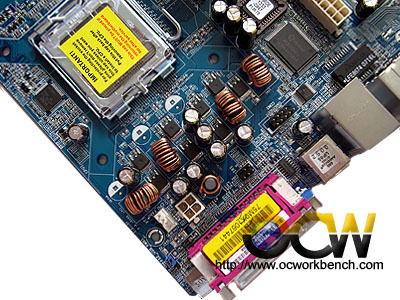

The board comes with 1 HDMR, 2 PCI, 1 PCIe x 1 and 1 PCIe x16 slot. On the top left corner of the board, you will see the Realtek HD audio Codec and Fast Ethernet controller. At the centre is the 20pin power connector and the I/O controller. To its right is a 4 phase power with a 4 pin AUX power. The LGA socket has good clearance for mounting different kinds  of heatsinks.

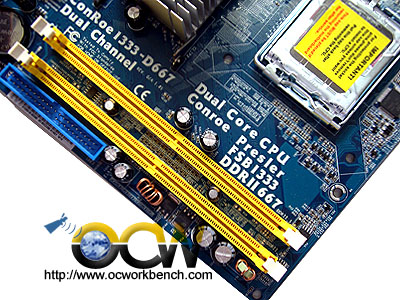

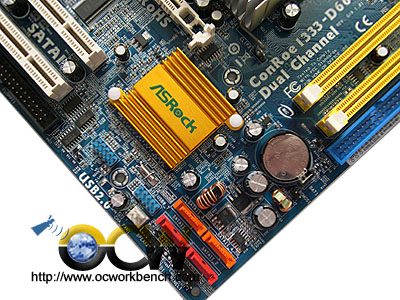

At the bottom left corner you will see the 4 SATA II connectors controlled by the ICH7 south bridge. Just above it are external connectors for USB brackets. On the right are 4 DDR2 DIMM slots supporrting up to 2 pc of DDRII667 Total memory supported : 4 GB

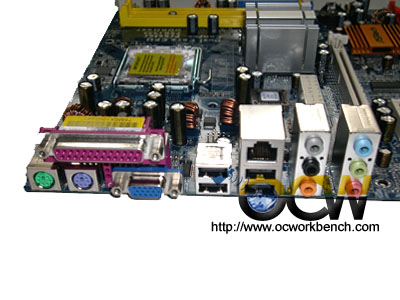

On the back panel, you will find the PS/2 Keyboard and Mouse, LPT1 port, D-SUB out, 4 USB, Fast Ethernet and 7.1 ch audio ports.



Discuss in Forum

Next >>>
