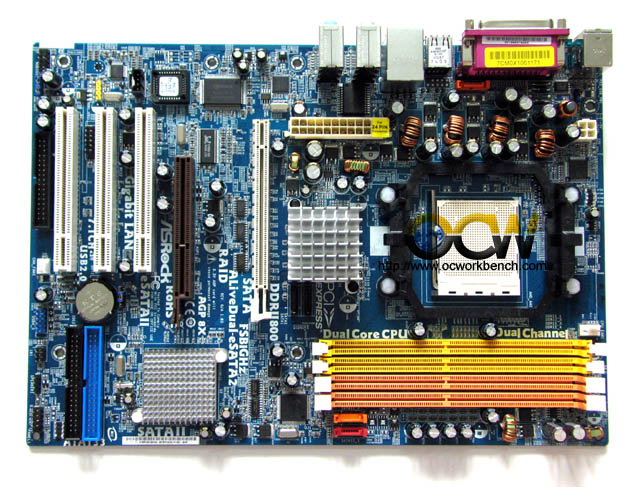

The board comes with 3 PCI, 1 PCIe x16 and 1 AGP 8x slot. Right behind the PCI slots are the audio codec, GbE controller chip. A 4 phase power being implemented and ASRock has rid the 20 pin connector and it comes with a 24 Pin.

At the centre of the board is the ULi M1695 which is responsible for the PCIe lanes. The other chipset at the south corner end of the board is the NF3-250 which supports AGP 8x and also the 2 SATA 1.5Gb/s port and 2 IDE channels. To the right we can see 4 channels of DDR2-800 and a red and orange SATA2 3.0Gb/s connector. This is supported by the Jmicron JMB363 chipset found next to the memory dimm slots.

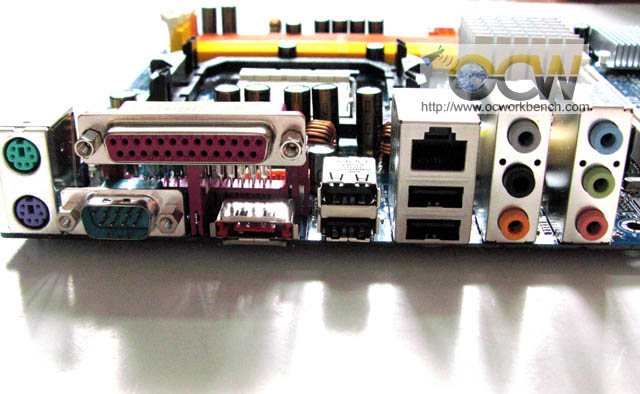

At the back panel, you will see the usual PS/2 Mouse and Keyboard, COM1, LPT1, eSATA port, 4 USB and 1 GbE and 7.1 ch audio ports.
