ASRock ALIVENF7G-HDREADY 7050-630A mainboard review - System CLK/Sandra XI
Bluetooth 17 Jun 2007

Benchmarks

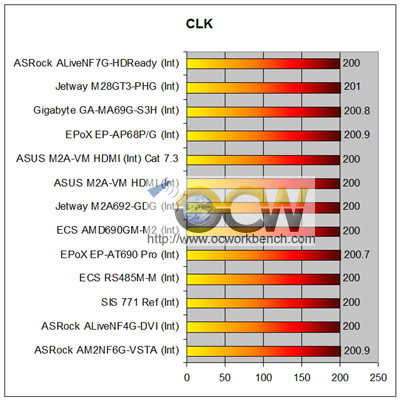

In this test, we measured the CLK used by the boards. Both boards are set to run in SPD mode of the modules which is rated CAS 5, 5-5-15, 2T. The ECS RS485-M-M and SIS 771 reference board runs on 200.00MHz on the dot. The EPoX EP-AT690 Pro runs at 200.7MHz while the ECS AMD 690GM-M2, Jetway M2A692-GDG and ASUS M2A-VM HDMI all runs at default 200.00Mhz. The Gigabyte GA-MA69G-S3h runs at 200.8MHz and the Jetway M28GT3-PHG measured 201.00MHz. The ASRock ALiveNF7G-HDReady runs on the dot at 200.0MHz.

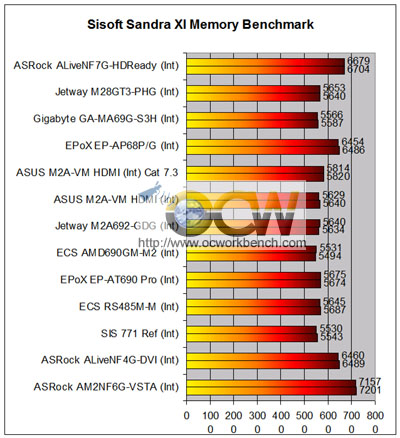

With that in mind, we take a look at the memory benchmark scores using Sandra XI. 128M of shared memory is in use. We can see that the EPoX EP-AT690 Pro scores quite similarly to the older ATi RS485M-M board. The NVIDIA series boards seems to have an edge over the rest in this test. The SiS 771 graphics core seems to eat a lot more into the memory bandwidth. It is surprising to see that ASRock, Jetway and EPoX all used the same chipset and yet the difference in memory bandwidth scores is noticeable.
