ASRock 4Core1333-FullHD ATi RS600/SB600 Mainboard Review Intro 2/5
Bluetooth 3 Jul 2007

Pricing of
ASRock ConRoe1333-DVI/H

>>>

Gallery

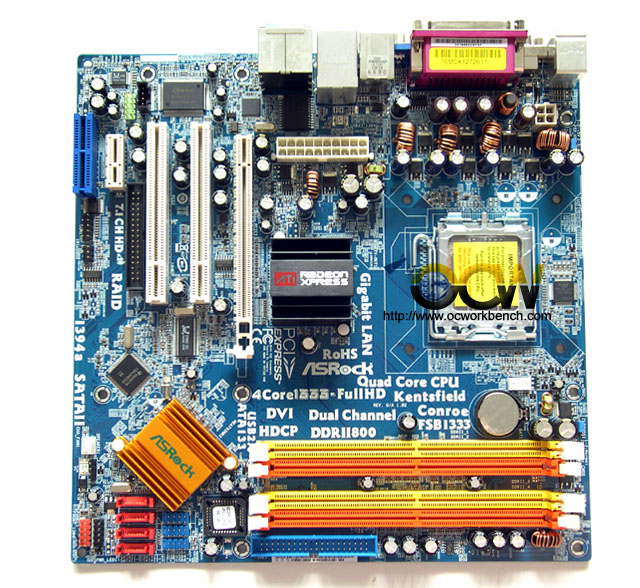

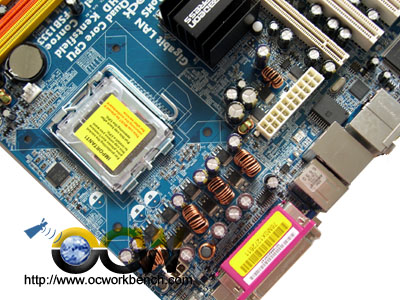

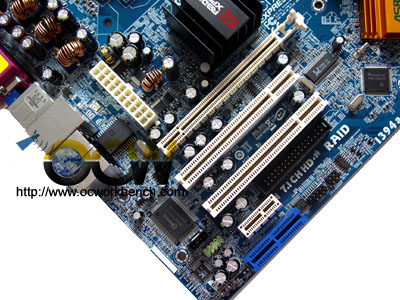

The mATX board comes with 1 HDMR, 2 PCI, 1 PCIe x1, PCIe x16 slot. On the top left corner of the board, you will see the Realtek HD audio Codec and GbE PHY on its right. At the centre is the 20pin power connector and the I/O controller. To its right is a 4 phase power with a 4 pin AUX power. At the centre is the north bridge with a heatsink attached.

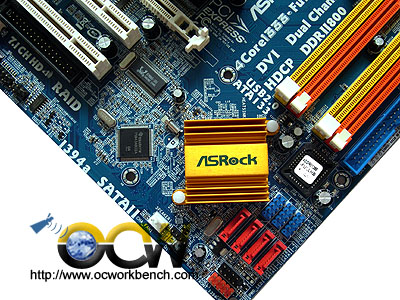

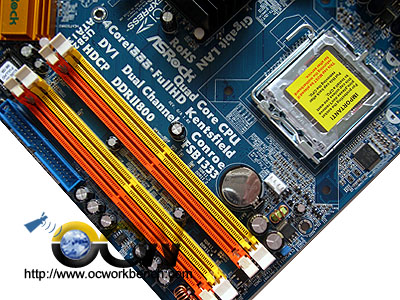

At the bottom left corner you will see the 4 red SATA II connectors supported by SB600. Near the SB is a 1394 controller chipset from TI. ClkGen is found next to PCI2 slot. On the right are 4 DDR2 DIMM slots supporrting up to 4 pc of DDR2-800. Total memory supported : 8 GB

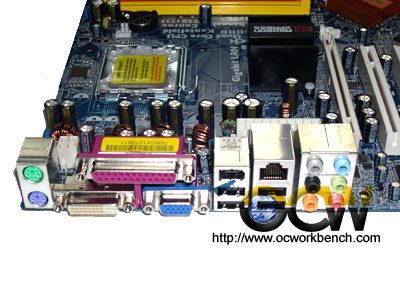

On the back panel, you will find the PS/2 Keyboard and Mouse, LPT1 port, DVI-D, D-SUB, 4 USB, 1 1394, 1 GbE and 7.1 ch audio ports.
