abit IP35 Pro Intel P35/ICH9R Mainboard Review Intro 2/6
Bluetooth 2 Aug 2007

Pricing of
abit IP35 Pro

>>>

Gallery

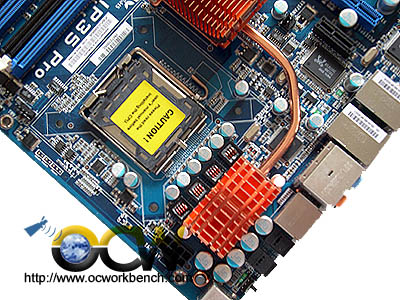

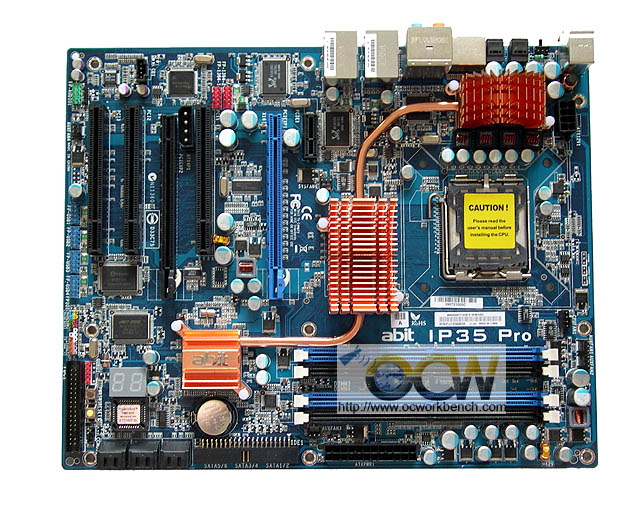

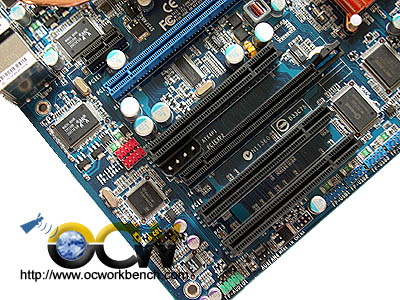

The board comes with 3 PCI, 1 PCIe x1, 1 PCIe x 4 (full length) and 1 PCIe x16 slot. On the top left corner of the board, you will see the Realtek ALC888 HD audio Codec and 2 Realtek GbE PHY right behind the blue coloured PCIe slot. Right behind the black PCIe slot is the 1394 controller by TI. Hiding behind the heatpipe is the Jmicron JMB363 that is in charge of the eSATA ports at the back panel.

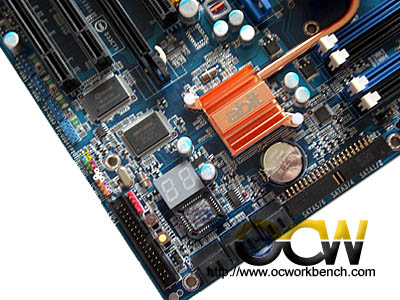

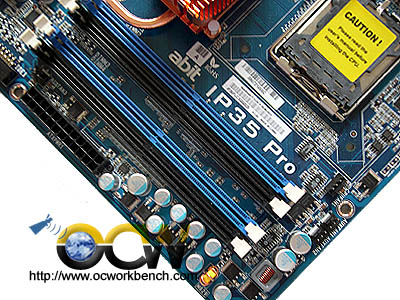

At the bottom left corner you will see the coloured front panel connector. On/off and reset switches. A debug LED, BIOS, I/O controller chip. Next to it is the ICH9R which supports the 6 SATAII ports. To its right is 4 DIMM slots supporting up to 8GB of DDR2-800.

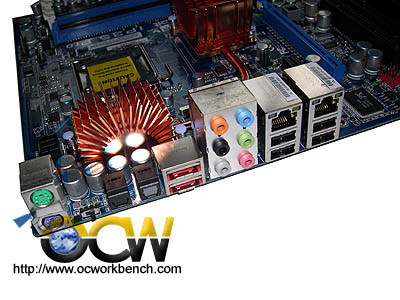

On the back panel, you will find the PS/2 Keyboard and Mouse, S/PDIF out, 2eSATA, 4 USB, 2 GbE and 7.1 ch audio ports. Additional USB ports and 1394 ports is provided via external brackets.
