Specifications of the mainboard BIOSTAR TF7050-M2
Bluetooth 24 Jun 2007

Pricing of AMD 690G
boards

>>>

Gallery

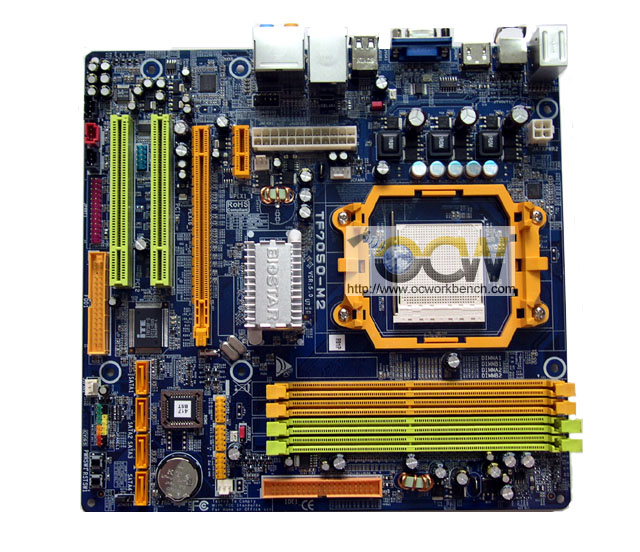

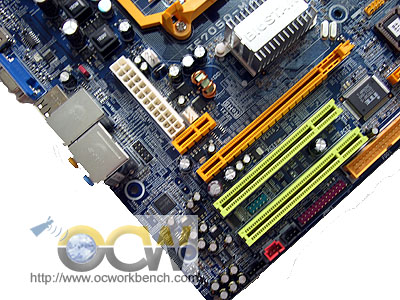

Starting from the left hand corner, we see the ALC888 audio codec. There are 2 PCI, 1 PCIe x16 and 1 PCIe x1 slot next to the 24 pin power connector. The GbE PHY is right behind the yellow PCIe x16 slot.

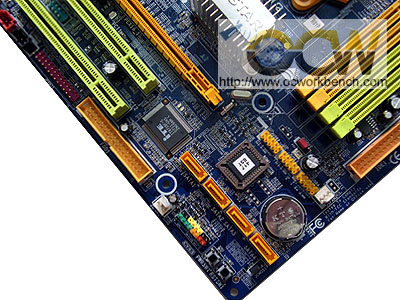

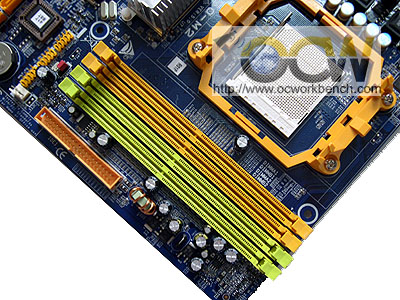

At the bottom left, we can see the 4 SATA II ports with RAID 0,1,0+1,5 supported by the single chipset MCP68 (GEFORCE 7050-630A) and 1 IDE channel. The USB external connectors are next to the BIOS chip. To its right are 4 DIMM slots supporting up to 8GB of DDR2-800. There is also a colour coded front panel connector.

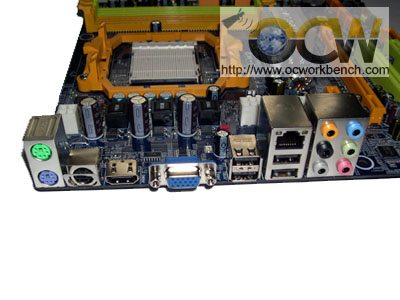

The back panel consists of PS/2 Keyboard and Mouse, TV OUT, 1 HDMI, 1 D-SUB, 4 USB, 1GBE and 8 ch audio ports.
