PCChips A33G (SiS 761GX) uATX mainboard Review Intro - Gallery
Bluetooth 30 Nov 2006

Pricing of PCCHIPS A33G >>>

Gallery

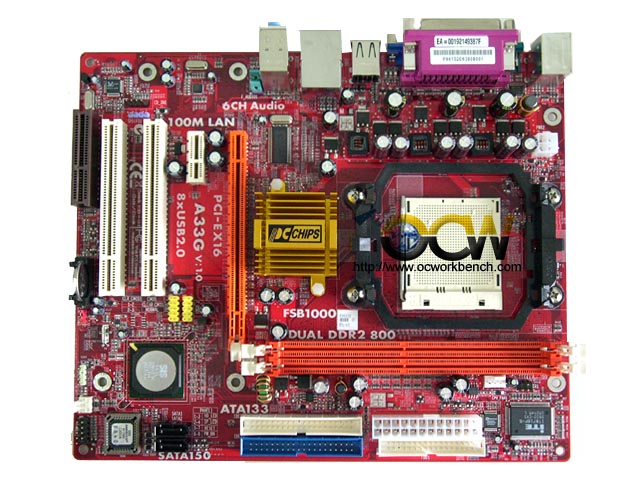

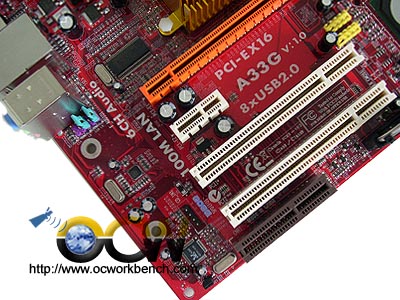

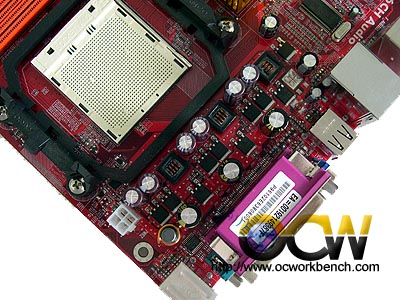

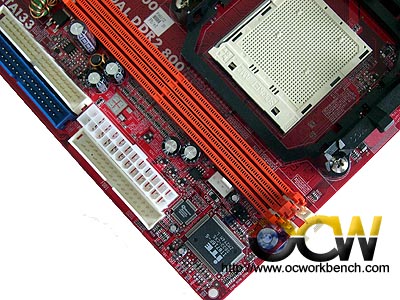

The A33G is based on the SIS 761GX/965L chipsets. The baord comes with 1 CNR, 2 PCI, 1 PCIe x1 and 1 PCie x16 slot. At the centre of the board you will see the golden colour heatsink, beneath it is the north bridge SiS 761GX. On its right is a 3 phase power design and the AM2 socket. below it is 2 DIMM slots capable of supporting up to 16GB in total of memory.

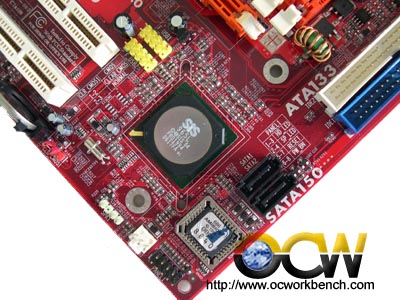

At the bottom left corner of the board, you will see the SiS 965L south bruidge and 2 SATA 1 ports, it can be configured for RAID 0/1. To tis right is 2 IDE Channels and floppy connector. The board also uses a 24 pin connector instead of the 20 pin connector.

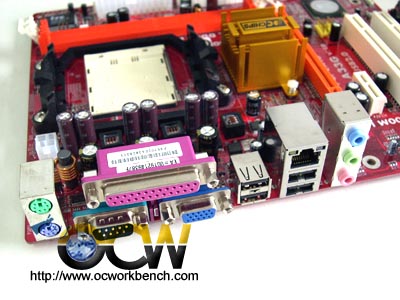

The back panel consists of PS/2 Keyboard and Mouse, 1 Com ports + 1 Parallel port, VGA, 4 USB ports, 1 x Fast ethernet and 6 ch audio ports.
