BIOS 2

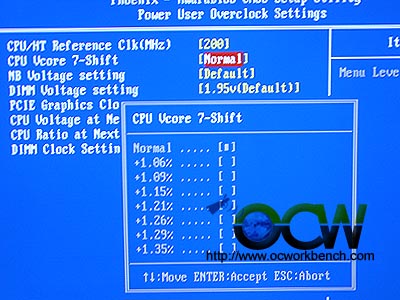

CPU VCore 7 Shift allows more
voltage to be added to the default voltage settings. A rule of thumb, never
try anything beyond 1.6v (after adding in the 7 shift voltage). For example,
I set vcore to 1.4v and Vcore 7Shift to 1.15%, the final voltage is 1.6v for
vcore.
That is to say, if you apply 1.55v for Vcore
and +1.35% for your 7-Shift, you will be getting 2.0925v.
Final CPU Voltage = Vcore X 7-Shift.

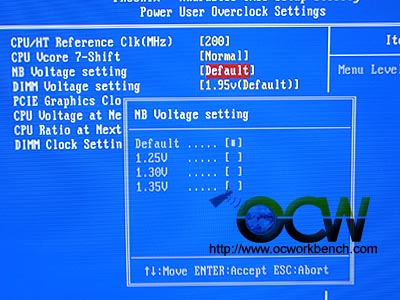

North bridge voltage can be
set to 1.25v, 1.30v or 1.35v

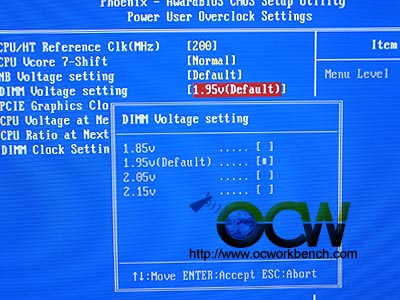

DIMM voltage can be set up to
2.15v

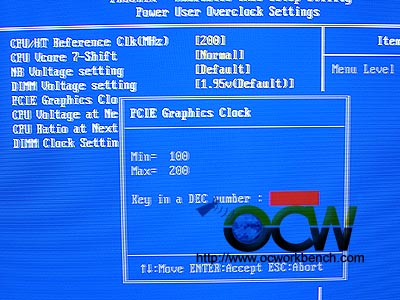

PCIe graphics clk can be fixed
at 100MHz or if you want to overclock just the graphics card, you can
increase it.
