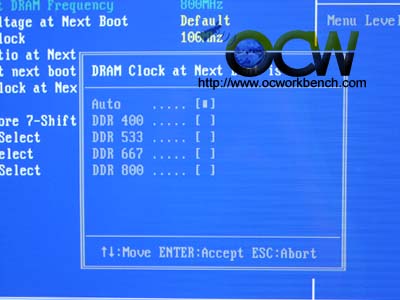

DRAM Clk can be set to run Async to
the CPU CLK. When running the SPD timing CAS 5 DDR2-800, it is in fact
running in ASYNC mode. For overclocking in 1:1, it is best to reduce it to
DDR400 so that CPU clk (200) runs in sync with memory at (200).

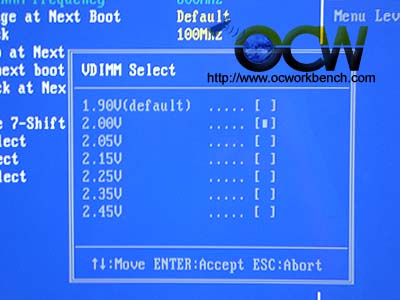

VDIMM voltage can
be set up to 2.45v

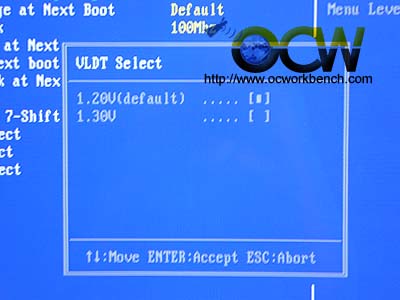

VLDT can be set to
1.3v. Default is 1.2v

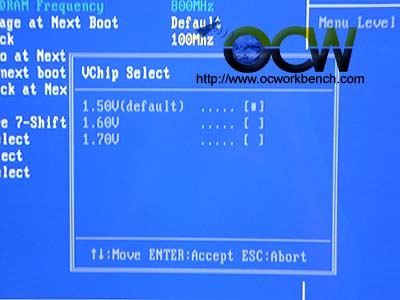

Vchipset can be set
to 1.70v for more stability during overclocking.
