Benchmarks

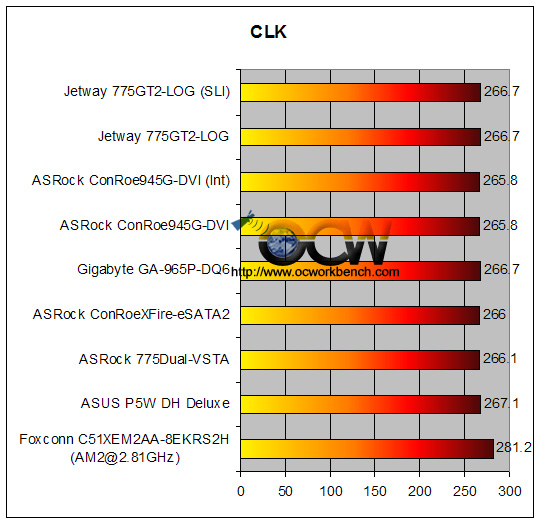

CPU FSB is still a valid and important criteria when judging systems performance. We measured the CPU FSB and documented it as below in 3 different boards and noticed the CPU CLK. As it is a Conroe X6800, the default FSB is rated at 266MHz. As shown below, the three boards has set its default clk quite differently.The ASRock Conroe945G-DVI seems to be underclocked at 265.8MHz with its production BIOS P1.00.

*AM2 comparative benchmarks are included. The 4000+ is o/c to 2.81GHz at 10x281MHz on the Foxconn C51XEM2AA-8EKRS2H running memory at CAS 3, 3-3-8,1T cmd with DDR2 running at 1:1 ratio. (DDR2-560).

In this review, we will compare the NF 570 SLI Intel edition board against the other boards based on Intel, VIA chipsets. The Jetway 775GT2-LOG is also measured and it falls almost exact at 266.7MHz. The board is run at CAS 5, 5-5-18, 2T ASync DDR2-800. The same settings is applied to the Gigabyte GA-965P-DQ6 and ASUS P5W DH Deluxe.

The rest of the boards runs at run it at DDR2-533 is because the memory is running at 1:1 ratio, that is to say in SYNC with the CPU. Although one might get a slightly higher score in this benchmark if you choose to run in ASync mode say DDR2-667, there isn't much difference in the performance, in fact, it might get a bit slower in some benchmarks.

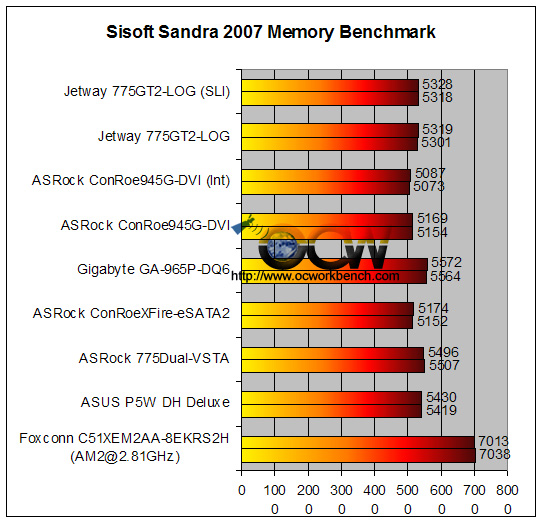

From the chart below, we ran the board with a single ASUS EN7900 TOP graphics card and in SLI mode, we threw in 2 pcs of 7600GT. Below are the memory benchmark scores under the two difference scenarios.
