2 SLI connectors. The second SLI connector on the GeForce 8800 GTX is hardware support for potential future enhancements in SLI software functionality. With the current drivers, only one SLI connector is actually used. Users can plug the SLI connector into either the right or left set of SLI fingers.

S-Video and 2 DVI out

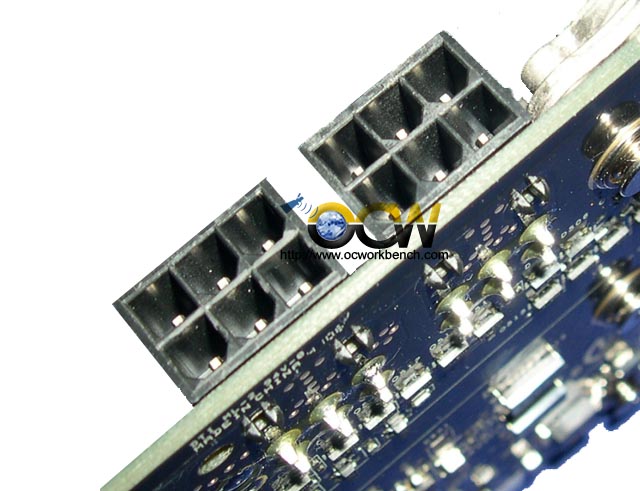

Dual 6 pin Power connector. The PCI Express spec allows for 75W from the edge connector plus 75W from each external 6-pin power connector. The GeForce 8800 GTX requires two 6-pin power connectors to deliver the full power requirements of the board while adhering to the PCI Express edge connector and 6-pin connector specification.
