BIOS II

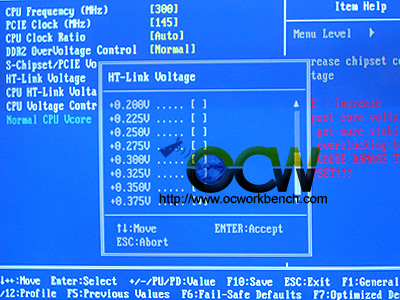

HT Link voltage can be increased by +0.375v of default for overclocking the
HT

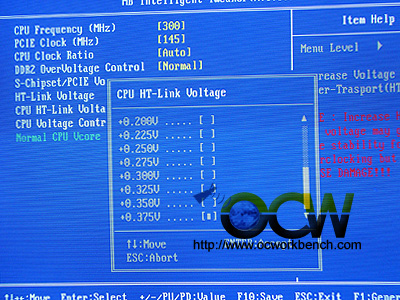

CPU HT Link voltage is the voltage between the chipset to the CPU. It can be
increased for stability and overclockability.

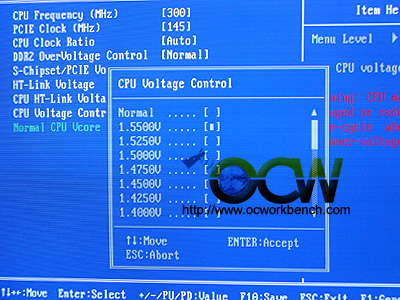

CPU Voltage control. In our 4000+, we can select up to 1.550v. Different
CPUs might have different ranges.

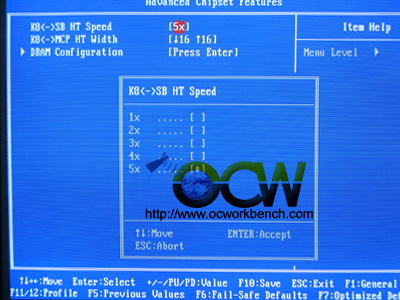

I think there is a typo. Whatever it is, we know it is the HT speed between
the chipset and the processor. It should be K8<->NB. This setting can be
lowered to ensure that the HT Speed remains close to 1GHz. e.g.
3x300MHz=900MHz which is below 1GHz.
