Gigabyte GA-M57SLI-S4 (NV 570 SLI) AM2 Mainboard Reivew Intro 2/6
Bluetooth 23 May 2006

Gallery

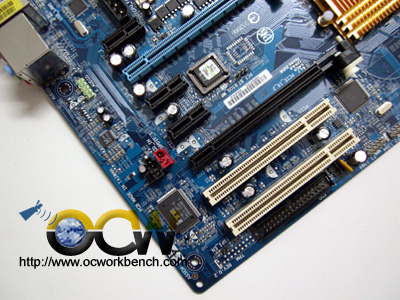

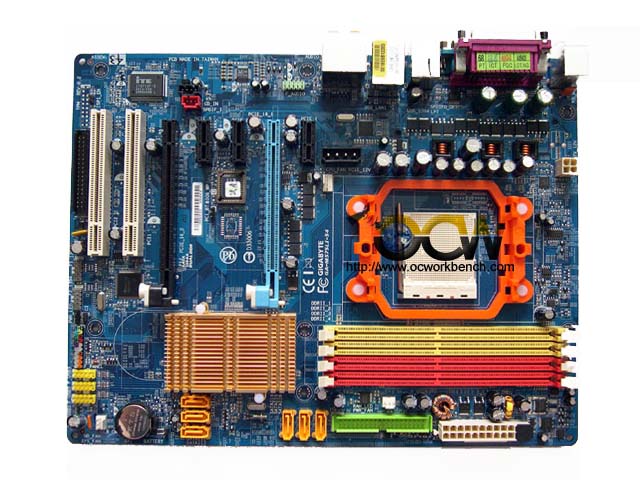

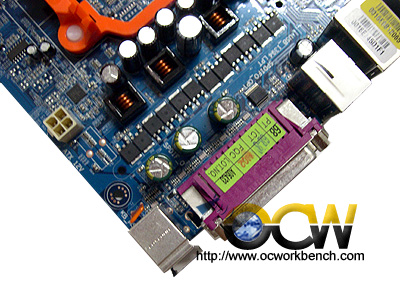

The board comes with 2 PCI, 3 PCIex1 or 2 x 8 or 1 x 16 slots. On the top left you would see the ALC 883 audio codec. There is 1 Marvell GbE PHY near the mosfets.

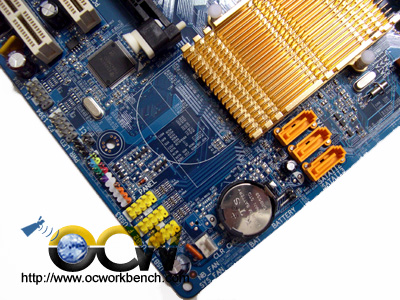

At the bottom left, you will see the 6 SATA II ports, 1 IDE channel supported by the 570 SLI chipset. Another 2 On the right are 4 channels of DDR2 slots supporting DDR2-533/667/800 modules. A total of 8GB can be installed.

The back panel consists of PS/2 Keyboard and Mouse, COM1, Paralle port, S/PDIF, 4 USB ports, 1x 1394, x 1 x GBe, 7.1 ch audio ports.

Discuss in Forum

Next >>>
