Gallery

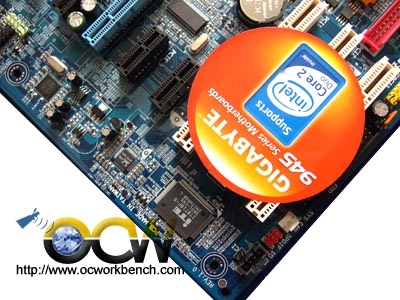

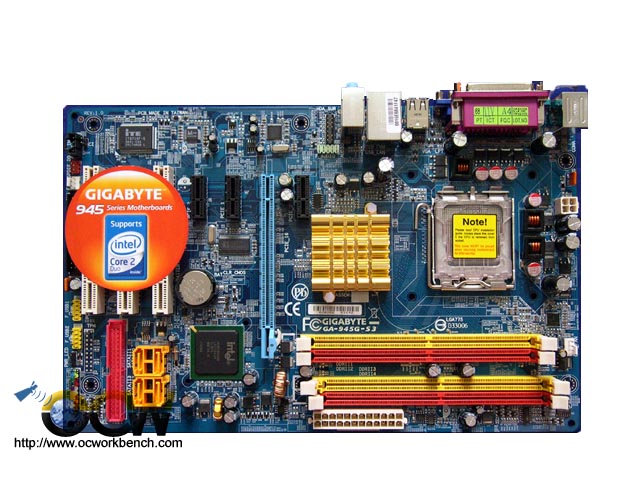

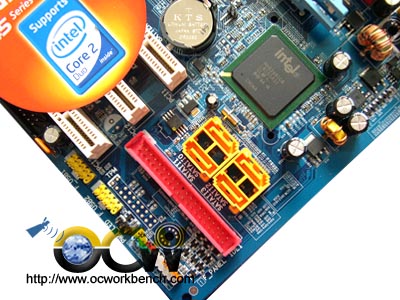

The board looks slimmer compared to the GA-965P-DQ6. The board comes with 3 PCI, 3 PCIe x 1, 1 PCIe x16 slots. At the left hand corner are the connectors for USB.  There is one IDE channel and 4 SATA II ports supported by ICH7 south bridge. At the top left rear is the audio codec and GbE controller.

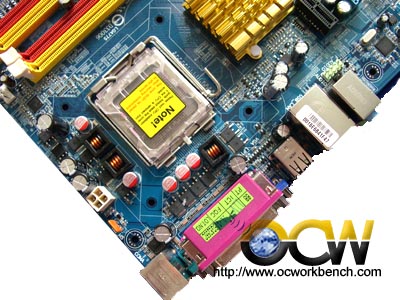

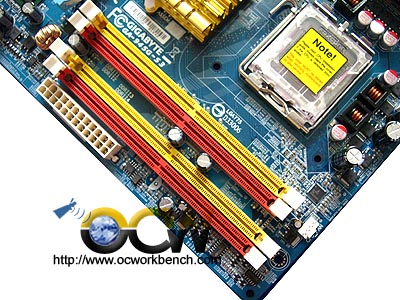

Near the centre is the PCIe x16 slot and next to it is the north bridge 945G under the golden heatsink. Below it are 4 DIMM slots supporting up to 4GB DDR2-400/533/667. Towards the right is the CPU socket.

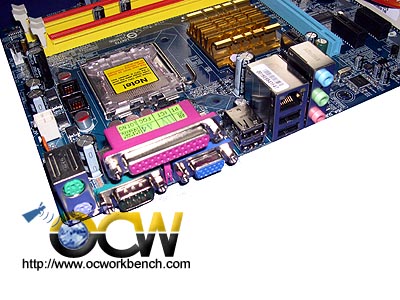

At the rear of the mainboard is the PS/2 Keyboard, Mouse output, COM port, VGA out, 4 USB ports, 1 GbE and the audio ports.
