Foxconn C51XE2AA-8EKRS2H NV 590 SLI Mainboard Intro 2/5
Bluetooth 6 Jul 2006

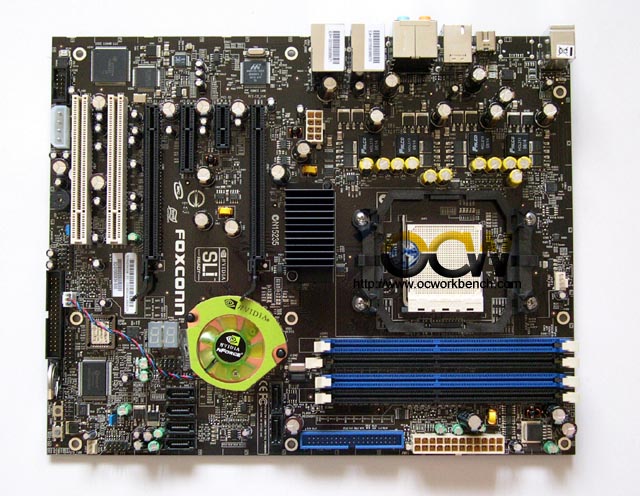

Gallery

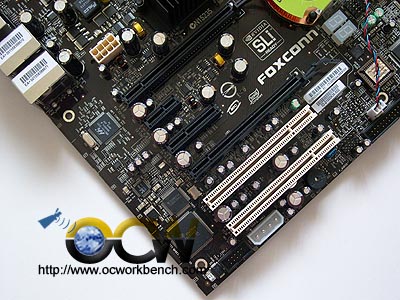

The board comes with 2 PCI, 2x PCIe x16, 1 x PCIe x4 and 1 x PCIe x1. Behind the slots are two 1394 chips from TI, a Realtek audio codec ALC882D and a Marvell GbE LAN controller.

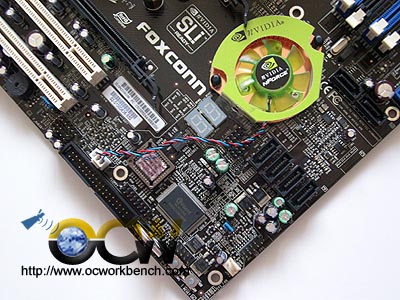

Further down to the left, you will see the 4 SATA II ports, 1 IDE channels and 2 more SATA II ports supported by the MCP chip.

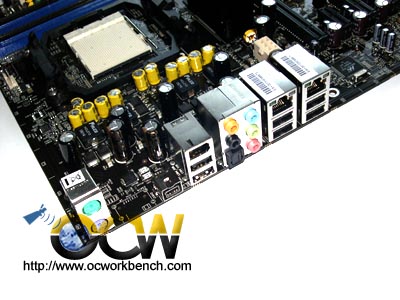

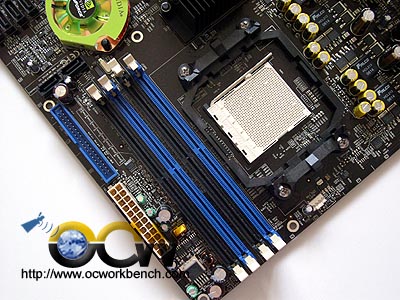

To the right is the 4 DDR2 DIMM slots supporting up to 8 GB of DDR2-800/667/533/400. The back panel consists of PS/2 Keyboard and Mouse, 1 COM port, 1 x 1394b port, 2 GbE, 4 USB ports, 7.1ch audio ports and S/PDIF port.
