| | EPoX MF570 SLI (NV 570 SLI)
AM2 Mainboard Reivew Intro 4/6
Bluetooth 22 May 2006
|
Pricing
from
various
vendors
>>> |
|
BIOS I
 |
 |
|

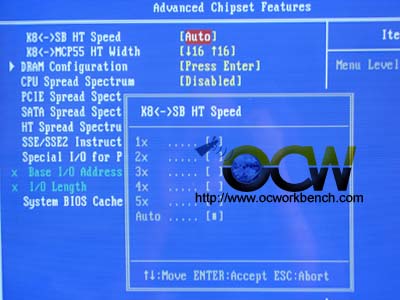

I think there is a typo. Whatever it is, we know it is the HT speed between
the chipset and the processor. It should be K8<->NB. This setting can be
lowered to ensure that the HT Speed remains close to 1GHz. e.g.
3x300MHz=900MHz which is below 1GHz. |

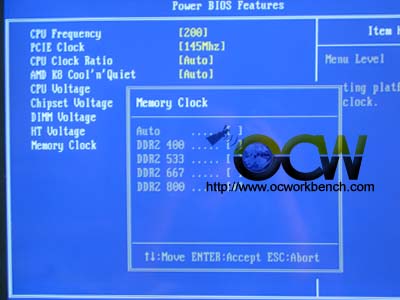

Memory clock allows you to set the ram to run async to your cpu clk. In our
case, we set it to DDR2-800. |
 |
 |
|

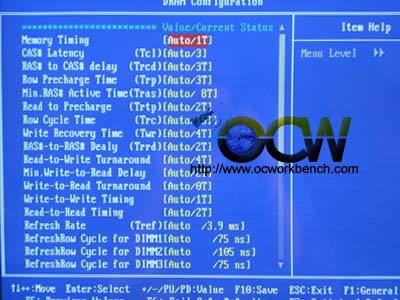

The DRAM configuration is where most of the timings associated to the DDR2
can be adjusted. In our case, we force our DDR2 module to run at CAS
5,5-5-10,1T cmd at DDR2-800 |

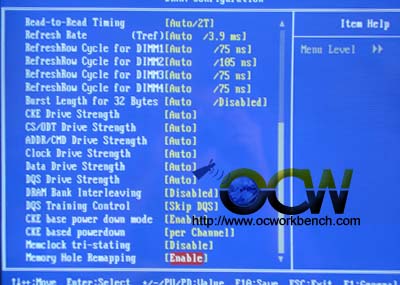

Scrolled down page of the DRAM configration page. |
