EPoX EP-9U1697GLI-J (ULi M1697) Intro 5/5
Bluetooth 30 Jan 2006
BIOS I
 |
 |
|

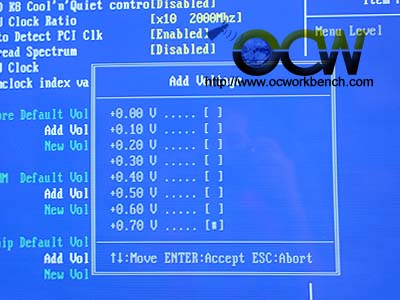

VDIMM can be set up to +0.70v of default. A max. of 3.2v
is possible. |
Chipset voltage can be added from a base voltage of 2.0v.
A max. of 2.3v is possible. |
 |
 |
|

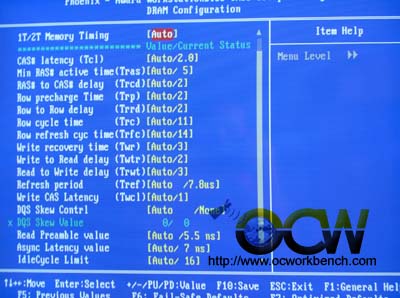

UNder DRAM configuration, this is where you set the
various ram timings like 1T cmd, CAS latency, tras, trp, trcd, trc etc. |

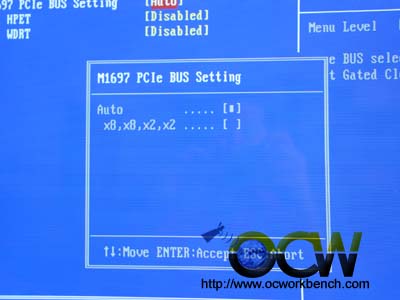

This is the option to set the board to run in PCIe x16 or
2 x PCIex8 |
|
|
|

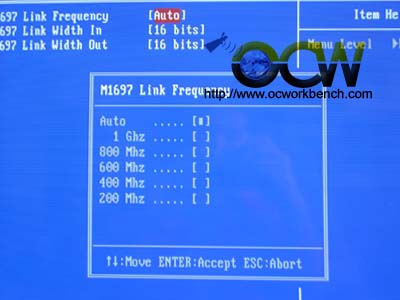

Link Freq. is where you set
the so call HTT Multiplier. 1GHz=5x, 800MHz = 4x and so on. |
|
