ECS P4M800PRO-M V2.0 (VIA P4M800 Pro chipset) for Core 2 Duo?Extreme Intro 2/5
Bluetooth 24 Nov 2006

Gallery

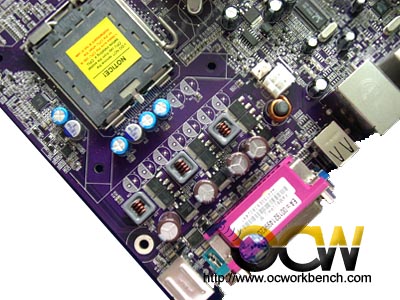

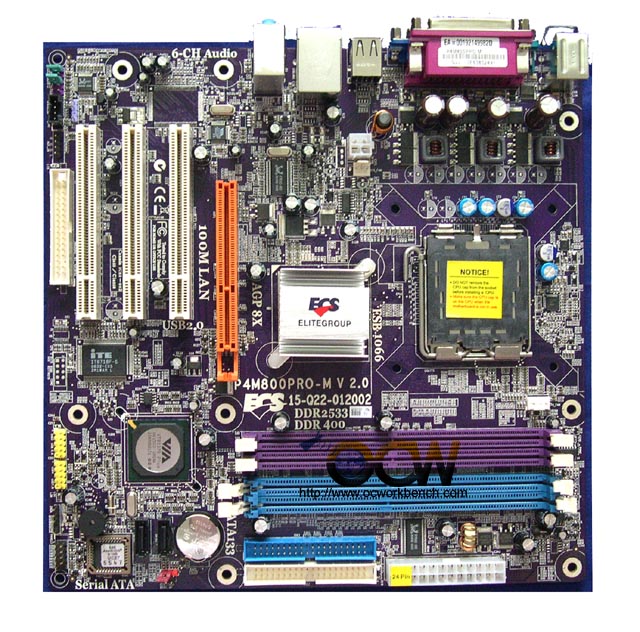

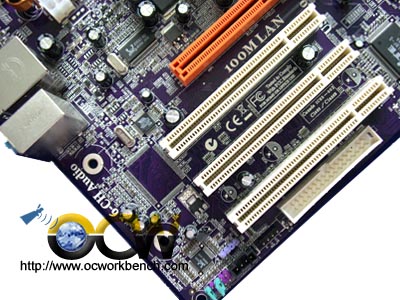

The board comes with 3 PCI, 1 AGP slot. On the top left you would see the 6 ch audio Realtek ALC 655 audio codec. There is also a VIA 6103L LAN 10/100 Ethernet PHY. On the right is a 3 phase design and right below is the LGA775 socket for the CPU. At the centre is the North bridge P4M800Pro.

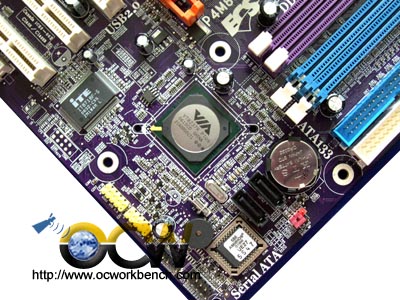

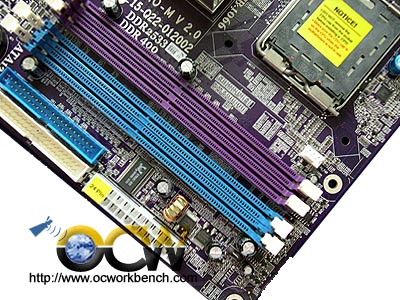

On the bottom left, you can see the 8237R+ south bridge. it offers RAID 0,1, 2 channels of IDE and 2 SATA I ports. On the left is the yellow USB connectors to external brackets. On the right is 2 channels of DDR2-533 and DDR2-400 (use either DDR or DDR2 only).

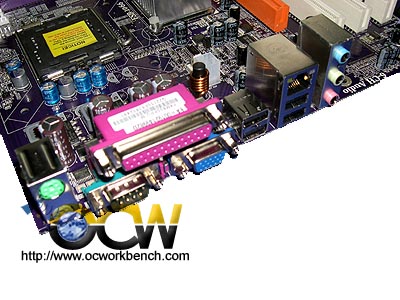

The back panel consists of PS/2 Keyboard and Mouse, 1 COM port, 4 USB ports,  1VGA, 6 ch audio ports.
