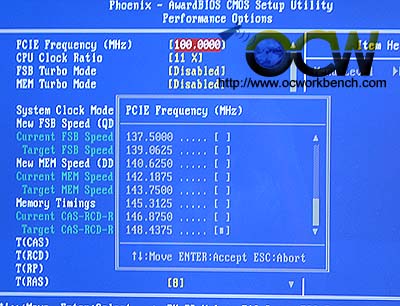

PCIe Frequency should be fixed to 100MHz.

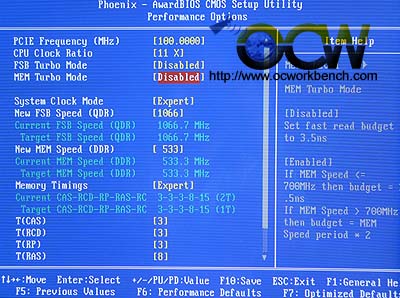

In the BIOS, there are options for you to o/c your PCIe bus. In the DRAM timings, we see some
interesting options. There is a MEM Turbo Mode. Under configuration, you can
set the usual ram timings including DRAM command rate to 1T. If you intend
to use 1T, make sure your DIMM voltage is raised to ~2.0v or more. |

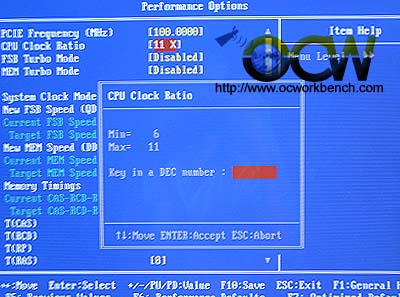

CPU Multiplier can be set from 6 x - 11 x for the X6800 ES |
|
FSB and MEM Turbo mode increases the
frequency of the settings. It can be enabled for better performance. |

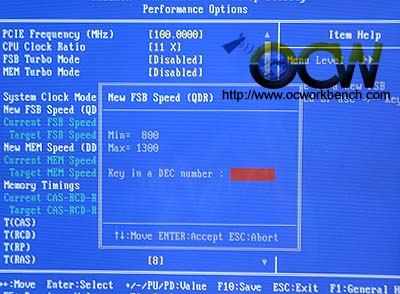

SFSB Speed can be set to set from 800MHz to
1300MHz. For our X6800. 1066=> 266MHz MHz FSB. From the option, it means that
the FSB window is from
800~1300 => 200MHz ~ 325MHz. |
