ASUS P5B Deluxe WiFi-AP Edition (i965P) Review Intro 2/5
Bluetooth 27 Sep 2006

Pricing from
various
vendors
>>>

Gallery

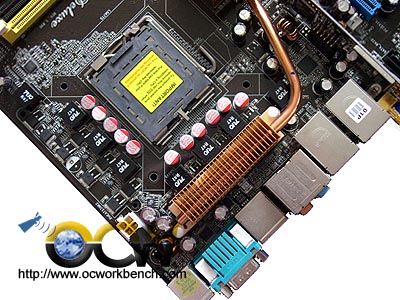

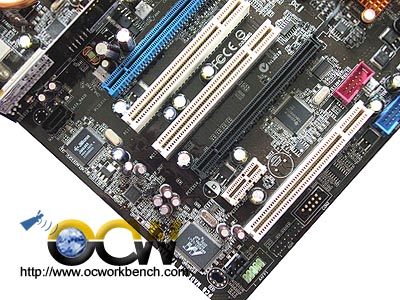

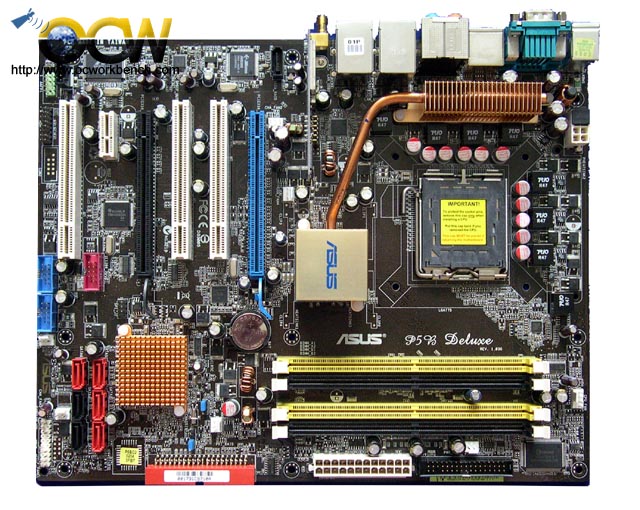

The board comes with 3 PCI, 2 PCIe x 16 slots (4x + 16x) and 1 PCIex1 slots. On the top left you would see the 1394 controller chipset, 7.1ch HD audio codec, two Marvell GbE PHY and one Jmicron JBM363 chipset. At the centre, you will see the WiFi card fasten to the mainboard with antenna port protruding from behind. Towards the CPU, we can see the heatpipe design with a 8 phase power design for maximum stability.

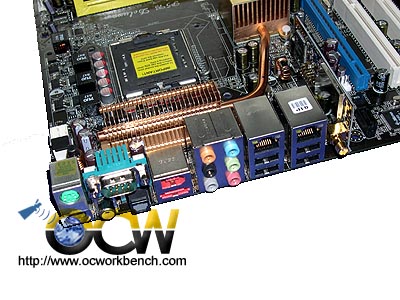

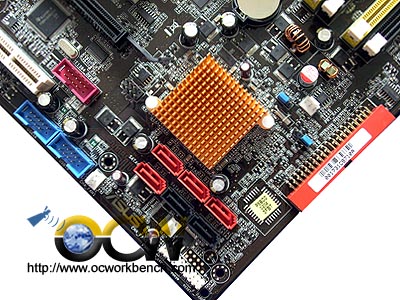

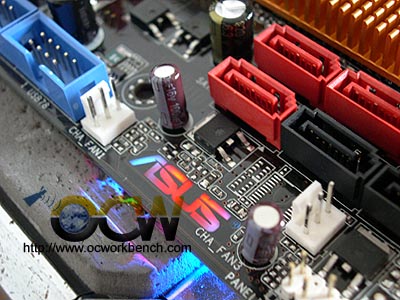

At the bottom left corner, we can see 6 SATA II ports, 1 IDE channel. The back panel consists of PS/2 Keyboard and Mouse, 1 COM port, 4 USB ports, 1394, eSATA, S/PDIF coaxial, 2 GbE and 7.1 ch audio ports.
