ASUS M2N32-SLI Deluxe Wireless Edition Review Intro 2/6
Bluetooth 21 May 2006

Gallery

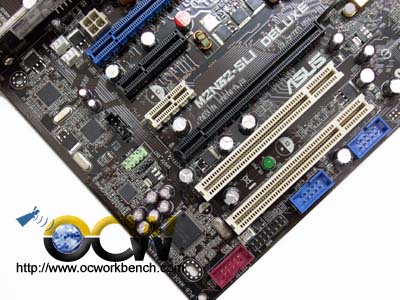

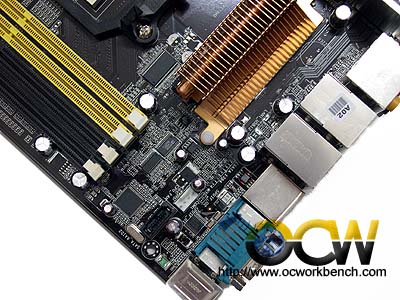

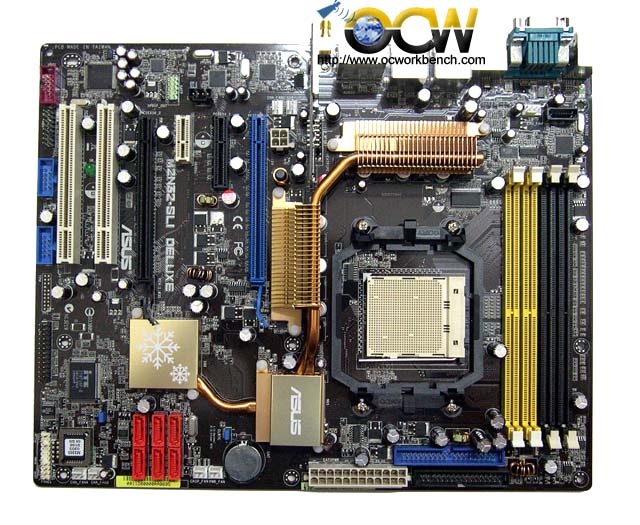

The board comes with 2 PCI, 2 PCIex16, 1 PCIex1, 1 PCIex4 slots. On the top left you would see the TI 1394, autio codec, Marvell GbE PHY (2x), Sil 3132 SATAII controller, SATAII port (on the extreme right). At the centre is the wireless module which allows you to go online or act as a Wireless Gateway for your devices.

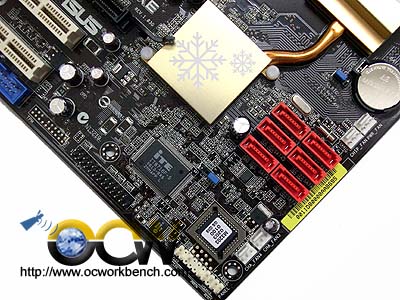

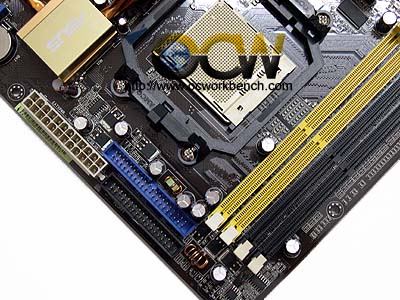

At the bottom left, you will see the 6 SATA II ports, 1 IDE channel supported by the south bridge. On the right are 4 channels of DDR2 slots supporting DDR2-533/667/800 modules. A total of 8GB can be installed. Both chipsets are mounted with a passive heatpipe.

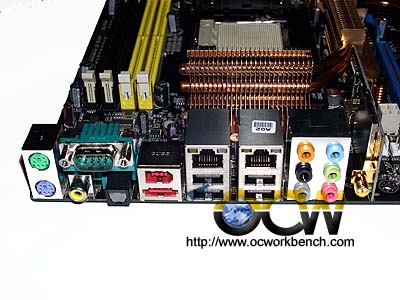

The back panel consists of PS/2 Keyboard and Mouse, COM port, 4 USB ports, S/PDIF, 2 GbE, eSATA, 1394 and 7.1 ch audio ports.
